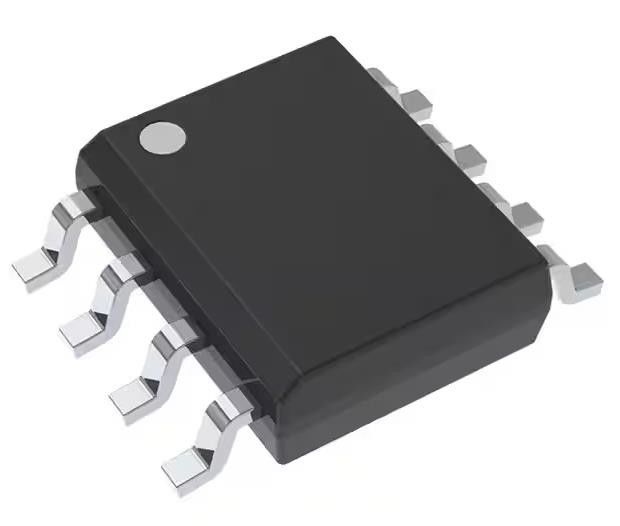

TLC555CDR 555 Type Timer Oscillator Single IC 2.1MHz 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC555CDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | 555 Type, Timer/Oscillator (Single) | Frequency: | 2.1MHz |
|---|---|---|---|
| Current - Supply: | 360 µA | Voltage - Supply: | 2V ~ 15V |
| Operating Temperature: | 0°C ~ 70°C | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC | Base Product Number: | TLC555 |
| High Light: | TLC555CDR ic chip,8-SOIC ic chip |
||
Product Description
TLC555CDR 555 Type, Timer/Oscillator (Single) IC 2.1MHz 8-SOIC
Specifications of TLC555CDR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Mfr | Texas Instruments |
| Series | LinCMOS™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | 555 Type, Timer/Oscillator (Single) |
| Count | - |
| Frequency | 2.1MHz |
| Voltage - Supply | 2V ~ 15V |
| Current - Supply | 360 µA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | TLC555 |
Features of TLC555CDR
• Very low power consumption:
– 1-mW typical at VDD = 5 V
• Capable of operation in astable mode
• CMOS output capable of swinging rail to rail
• High output current capability
– Sink: 100-mA typical
– Source: 10-mA typical
• Output fully compatible with CMOS, TTL, and MOS
• Low supply current reduces spikes during output transitions
• Single-supply operation from 2 V to 15 V
• Functionally interchangeable with the NE555; has same pinout
• ESD protection exceeds 2000 V per MIL-STD883C, method 3015.2
• Available in Q-temp automotive
– High-reliability automotive applications
– Configuration control and print support
– Qualification to automotive standards
Introductions of TLC555CDR
• Precision timing
• Pulse generation
• Sequential timing
• Time delay generation
• Pulse width modulation
• Pulse position modulation
• Linear ramp generator
Environmental & Export Classifications of TLC555CDR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
