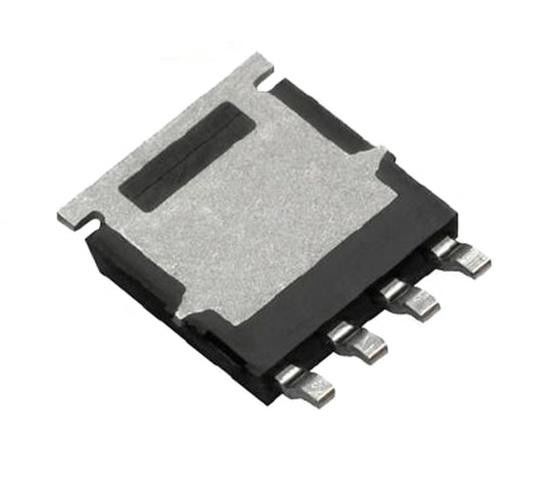

SQJ858AEP-T1_GE3 Smd Ic N Channel 40 V 58A (Tc) 48W (Tc) PowerPAK® SO-8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SQJ858AEP-T1_GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 40 V | Current - Continuous Drain (Id) @ 25°C: | 58A (Tc) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 6.3mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id: | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 55 NC @ 10 V |
| Vgs (Max): | ±20V | Input Capacitance (Ciss) (Max) @ Vds: | 2450 PF @ 20 V |
| High Light: | SQJ858AEP-T1_GE3 smd ic,40 V smd ic |
||
Product Description
SQJ858AEP-T1_GE3 N-Channel 40 V 58A (Tc) 48W (Tc) Surface Mount PowerPAK® SO-8
Specifications of SQJ858AEP-T1_GE3
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Vishay Siliconix |
| Series | Automotive, AEC-Q101, TrenchFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.3mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2450 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 48W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SQJ858 |
Features of SQJ858AEP-T1_GE3
• TrenchFET® Power MOSFET
• AEC-Q101 Qualified
• 100 % Rg and UIS Tested
Environmental & Export Classifications of SQJ858AEP-T1_GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
