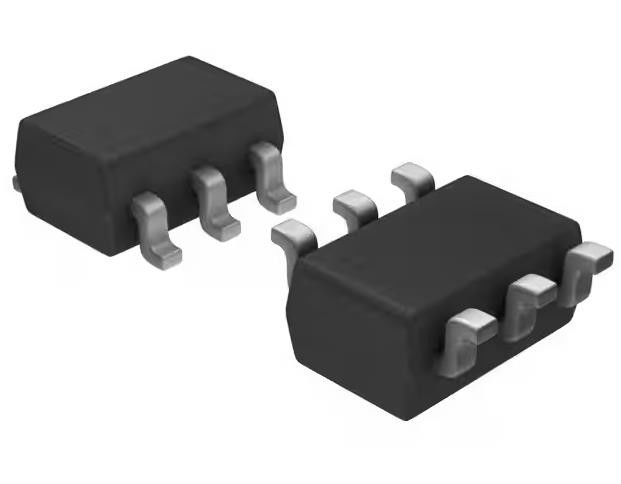

SN74LVC2GU04DBVR Inverter Integrated Circuit Chip 2 Channel SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2GU04DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Inverter | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 2 | Max Propagation Delay @ V, Max CL: | 3.5ns @ 5V, 50pF |
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 32mA, 32mA | Input Logic Level - Low: | 0.41V ~ 1.38V |
| High Light: | SN74LVC2GU04DBVR inverter chip,SOT-23-6 inverter chip |
||
Product Description
SN74LVC2GU04DBVR Inverter Integrated Circuit Chip 2 Channel SOT-23-6
Specifications of SN74LVC2GU04DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.41V ~ 1.38V |
| Input Logic Level - High | 1.24V ~ 4.13V |
| Max Propagation Delay @ V, Max CL | 3.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| Base Product Number | 74LVC2GU04 |
Features of SN74LVC2GU04DBVR
* Available in the Texas Instruments NanoFree rmPackage
* Supports 5-V Vcc Operation
* lnputs Accept Voltages to 5.5 V
* Max tpd of 3.7 ns at 3.3 V
* Low Power Consumption, 10-A Max lcc
* +24-mA Output Drive at 3.3 V
* Typical Volp (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25C
* Typical VoHv (Output Vo Undershoot)>2 V at Vcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
* Can Be Used as a Down Translator toTranslate Inputs From a Max of 5.5 V Down tothe Vcc Level
* Unbuffered Outputs
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SN74LVC2GU04DBVR
This dual inverter is designed for 1.65-V to 5.5-V VCC operation.
Environmental & Export Classifications of SN74LVC2GU04DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
