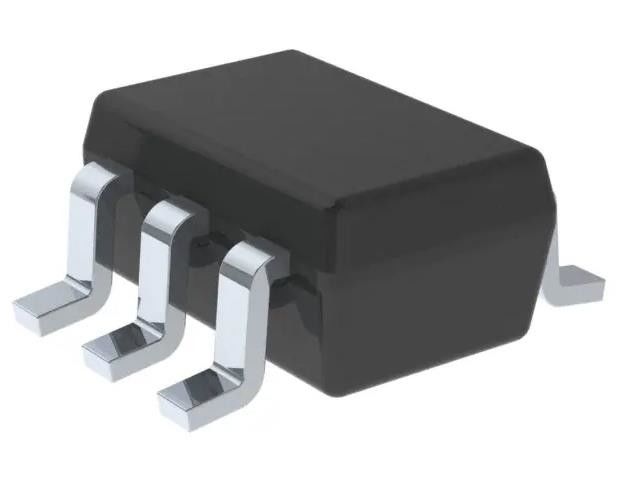

SN74LVC2G17DCKT Buffer Non-Inverting 2 Element 1 Bit Per Element Push Pull
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2G17DCKT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Schmitt Trigger |
| Output Type: | Push-Pull | Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C (TA) |
| High Light: | SN74LVC2G17DCKT,Buffer Integrated Circuit Chip |
||
Product Description
SN74LVC2G17DCKT Buffer Non-Inverting 2 Element 1 Bit per Element Push-Pull
Specifications of SN74LVC2G17DCKT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | 74LVC2G17 |
Features of SN74LVC2G17DCKT
* Schmitt-Trigger inputs provide hysteresis
* Available in the Texas InstrumentsNanoFreem Package
* Supports 5-V Vcc Operation
* Inputs Accept Voltages to 5.5 V
* Max tpd of 5.4 ns at 3.3 V
*Low Power Consumption, 10-A Max lcc
* +24-mA Output Drive at 3.3 V
* Typical VoLP (Output Ground Bounce)< 0.8 V at Vcc = 3.3 V, TA = 25C
* Typical VoHv (Output Vo Undershoot)> 2 V at Vcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial-Power-DownMode Operation and Back-Drive Protection
* Latch-Up Performance Exceeds 100 mAPer JESD 78, Class Il
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model
- 1000-V Charged-Device Model
Applications of SN74LVC2G17DCKT
• MP3 Players/Recorders
• Personal Digital Assistants (PDAs)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drives (SSDs): Client and Enterprise
• TVs: LCD/Digital and High-Definition (HDTVs)
• Tablets: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards, and Mice
Environmental & Export Classifications of SN74LVC2G17DCKT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
