SN74LVC2G132DCUR NAND Gate IC 2 Channel Schmitt Trigger 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC2G132DCUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | NAND Gate |
|---|---|---|---|
| Number Of Circuits: | 2 | Number Of Inputs: | 2 |
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 32mA, 32mA | Input Logic Level - Low: | 0.39V ~ 1.87V |
| High Light: | SN74LVC2G132DCUR nand gate ic,8-VSSOP nand gate ic |
||
Product Description

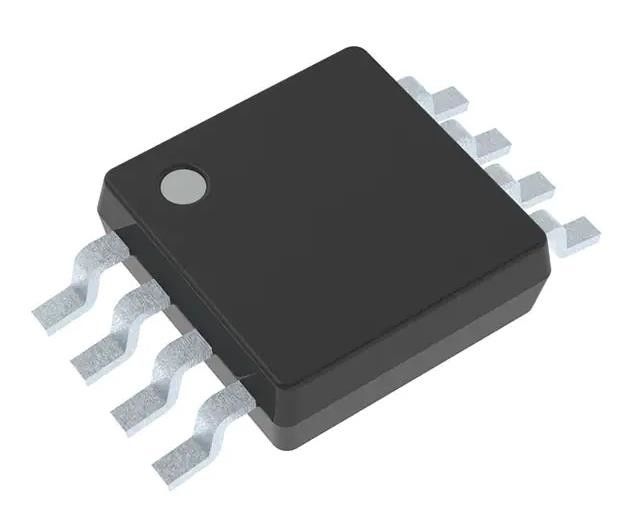

SN74LVC2G132DCUR NAND Gate IC 2 Channel Schmitt Trigger 8-VSSOP
Specifications of SN74LVC2G132DCUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.39V ~ 1.87V |
| Input Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Base Product Number | 74LVC2G132 |
Features of SN74LVC2G132DCUR
* Available in Texas Instruments NanoFree TwPackage
* Supports 5-V Vcc Operation
* lnputs Accept Voltages to 5.5 V
* Max tpd of 5.3 ns at 3.3 V
* Low Power Consumption, 10-pA Max lcc
* +24-mA Output Drive at 3.3 V
* Typical Volp (Output Ground Bounce) <0.8 V atVcc = 3.3 V, TA = 25C
* Typical VoHv (Output Vo Undershoot) >2 V atVcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial PowerDown Mode, and Back Drive Protection
* Support Translation Down (5V to 3.3V and 3.3Vto 1.8V)
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model (A114-A)
- 200-V Machine Model(A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SN74LVC2G132DCUR
This dual 2-input NAND gate with Schmitt-trigger inputs is designed for 1.65-V to 5.5-V VCC operation.
Environmental & Export Classifications of SN74LVC2G132DCUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
