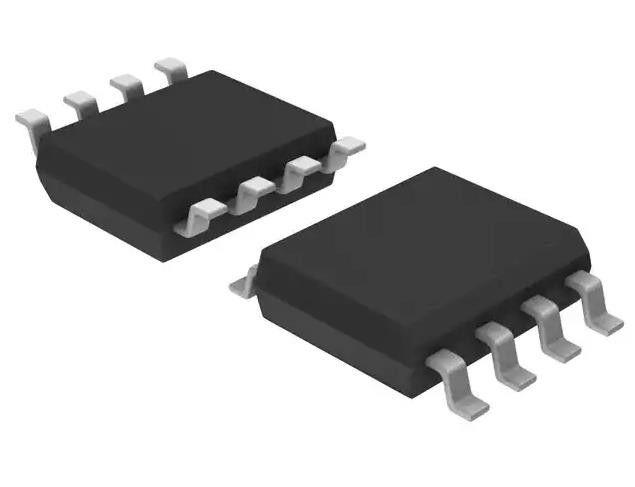

SN74LVC1G123DCTR Multivibrator Monostable Chip 18.5 Ns SM8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G123DCTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Monostable | Independent Circuits: | 1 |
|---|---|---|---|
| Schmitt Trigger Input: | Yes | Propagation Delay: | 18.5 Ns |
| Current - Output High, Low: | 32mA, 32mA | Voltage - Supply: | 1.65 V ~ 5.5 V |
| Operating Temperature: | -40°C ~ 125°C | Package / Case: | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| High Light: | SN74LVC1G123DCTR,Multivibrator Monostable Chip |
||
Product Description
SN74LVC1G123DCTR Integrated Circuit Chip Monostable Multivibrator 18.5 ns SM8
Specifications of SN74LVC1G123DCTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Multivibrators | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Monostable |
| Independent Circuits | 1 |
| Schmitt Trigger Input | Yes |
| Propagation Delay | 18.5 ns |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Supplier Device Package | SM8 |
| Base Product Number | 74LVC1G123 |
Features of SN74LVC1G123DCTR
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range:
–40°C to +85°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL logic ICs
Applications of SN74LVC1G123DCTR
• Enable digital signals
Environmental & Export Classifications of SN74LVC1G123DCTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
