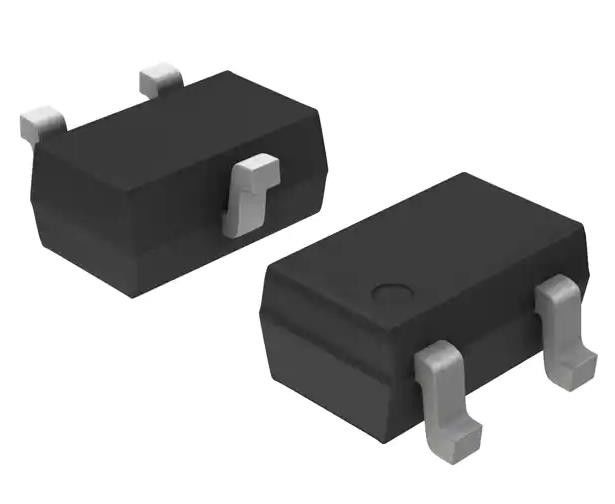

SMUN5113T1G Pre-Biased Bipolar Transistor PNP - Pre-Biased 50 V 100 mA 202 mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SMUN5113T1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP - Pre-Biased | Current - Collector (Ic) (Max): | 100 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50 V | Resistor - Base (R1): | 47 KOhms |
| Resistor - Emitter Base (R2): | 47 KOhms | DC Current Gain (hFE) (Min) @ Ic, Vce: | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic: | 250mV @ 300µA, 10mA | Current - Collector Cutoff (Max): | 500nA |
Product Description
SMUN5113T1G Pre-Biased Bipolar Transistor PNP - Pre-Biased 50 V 100 mA 202 mW
Specifications of SMUN5113T1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 47 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Power - Max | 202 mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Base Product Number | SMUN5113 |
Features of SMUN5113T1G
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of SMUN5113T1G
This series of digital transistors is designed to replace a single device and its external resistor bias network.
