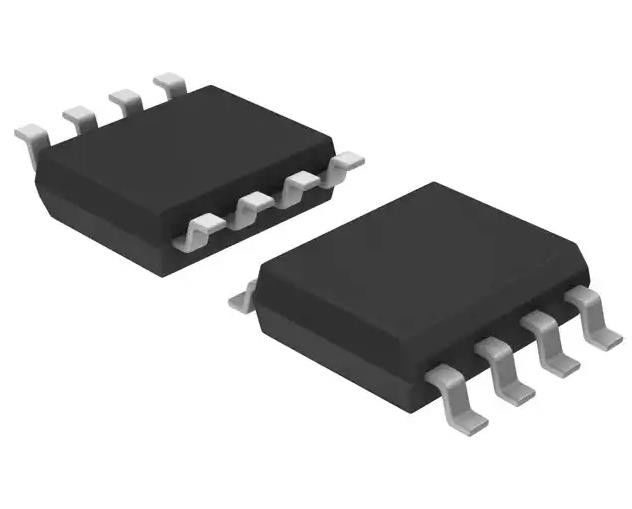

NCV7342D10R2G 1/1 Integrated Circuit Chip Transceiver Half CANbus 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCV7342D10R2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | CANbus |
|---|---|---|---|
| Number Of Drivers/Receivers: | 1/1 | Duplex: | Half |
| Voltage - Supply: | 4.5V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
| Base Product Number: | NCV7342 | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
Product Description
NCV7342D10R2G 1/1 Integrated Circuit Chip Transceiver Half CANbus 8-SOIC
Specifications of NCV7342D10R2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Data Rate | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | NCV7342 |
Features of NCV7342D10R2G
• Compatible with the ISO 11898−2, ISO 11898−5 Standards
• High Speed (up to 1 Mbps)
• VIO Pin on NCV7342−3 Version Allowing Direct Interfacing with 3 V to 5 V Microcontrollers
• VSPLIT Pin on NCV7342−0 Version for Bus Common Mode Stabilization
• Very Low Current Consumption in Standby Mode with Wake−up via the Bus
• Excellent Electromagnetic Susceptibility (EMS) Level Over Full Frequency Range. Very Low Electromagnetic Emissions (EME) Low EME Also Without Common Mode (CM) Choke
• Bus Pins Protected Against >15 kV System ESD Pulses
• Transmit Data (TxD) Dominant Time−out Function
• Bus Dominant Time−out function in Standby Mode
• Under All Supply Condition the Chip Behaves Predictably
• No Disturbance of the Bus Lines with an Unpowered Node
• Thermal Protection
• Bus Pins Protected Against Transients in an Automotive Environment
• Bus Pins Short Circuit Proof to Supply Voltage and Ground
• These are Pb−Free Devices
Applications of NCV7342D10R2G
• Automotive
• Industrial Networks
Environmental & Export Classifications of NCV7342D10R2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
