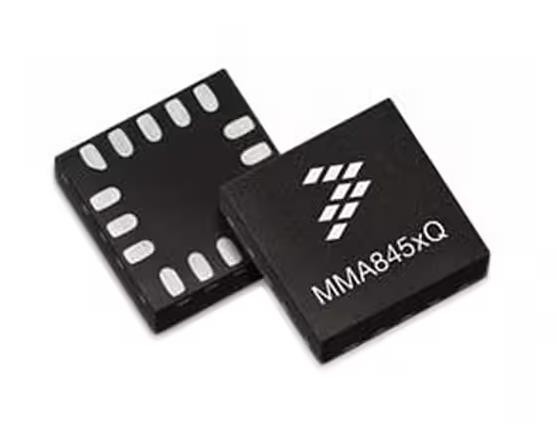

MMA8452QT Accelerometer X, Y, Z Axis ±2g, 4g, 8g 0.78Hz ~ 400Hz 16-QFN (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMA8452QT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Adjustable Bandwidth, Selectable Scale, Sleep Mode | Type: | Digital |
|---|---|---|---|
| Axis: | X, Y, Z | Acceleration Range: | ±2g, 4g, 8g |
| Sensitivity (LSB/g): | 1024 (±2g) ~ 256 (±8g) | Bandwidth: | 0.78Hz ~ 400Hz |
| Output Type: | I²C | Voltage - Supply: | 1.95V ~ 3.6V |
Product Description
MMA8452QT Accelerometer X, Y, Z Axis ±2g, 4g, 8g 0.78Hz ~ 400Hz 16-QFN (3x3)
Specifications of MMA8452QT
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Accelerometers | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Tube |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Sensitivity (LSB/g) | 1024 (±2g) ~ 256 (±8g) |
| Sensitivity (mV/g) | - |
| Bandwidth | 0.78Hz ~ 400Hz |
| Output Type | I²C |
| Voltage - Supply | 1.95V ~ 3.6V |
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | MMA84 |
Features of MMA8452QT
• 1.95 V to 3.6 V supply voltage
• 1.6 V to 3.6 V interface voltage
• ±2 g/±4 g/±8 g dynamically selectable full-scale
• Output data rates (ODR) from 1.56 Hz to 800 Hz
• 99 μg/√Hz noise
• 12-bit and 8-bit digital output
• I2C digital output interface
• Two programmable interrupt pins for six interrupt sources
• Three embedded channels of motion detection
— Freefall or motion detection: one channel
— Pulse detection: one channel
— Transient detection: one channel
• Orientation (portrait/landscape) detection with set hysteresis
• Automatic ODR change for auto-wake and return to sleep
• High-pass filter data available real-time
• Self-test
• Current consumption: 6 μA to 165 μA
Applications of MMA8452QT
• E-compass applications
• Static orientation detection (portrait/landscape, up/down, left/right, back/front position identification)
• Notebook, e-reader, and laptop tumble and freefall detection
• Real-time orientation detection (virtual reality and gaming 3D user position feedback)
• Real-time activity analysis (pedometer step counting, freefall drop detection for HDD, dead-reckoning GPS backup)
• Motion detection for portable product power saving (auto-sleep and auto-wake for cell phone, PDA, GPS, gaming)
• Shock and vibration monitoring (mechatronic compensation, shipping and warranty usage logging)
• User interface (menu scrolling by orientation change, pulse detection for button replacement)
Environmental & Export Classifications of MMA8452QT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
