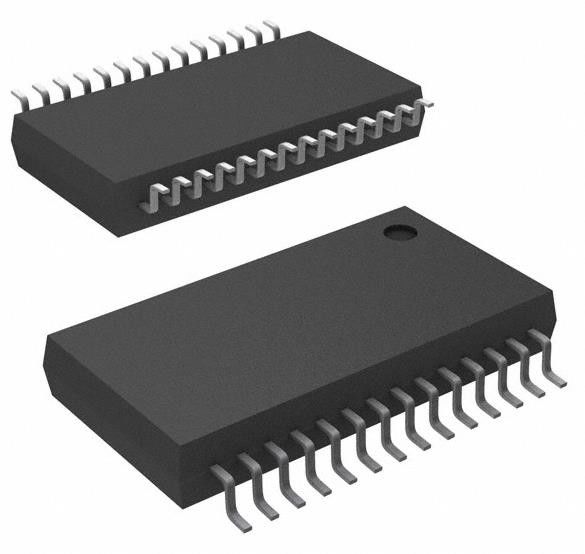

MAX3243CDB 3/5 Integrated Circuit Chip Transceiver Full RS232 28-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX3243CDB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | RS232 |
|---|---|---|---|
| Number Of Drivers/Receivers: | 3/5 | Duplex: | Full |
| Receiver Hysteresis: | 300 MV | Data Rate: | 250kbps |
| Voltage - Supply: | 3V ~ 5.5V | Operating Temperature: | 0°C ~ 70°C |
Product Description
MAX3243CDB 3/5 Integrated Circuit Chip Transceiver Full RS232 28-SSOP
Specifications of MAX3243CDB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 3/5 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| Base Product Number | MAX3243 |
Specifications of MAX3243CDB
• Operates With 3-V to 5.5-V VCC Supply
• Single-Chip and Single-Supply Interface for IBM™ PC/AT™ Serial Port
• RS-232 Bus-Pin ESD Protection of
±15 kV Using Human-Body Model (HBM)
• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU V.28 Standards
• Three Drivers and Five Receivers
• Operates Up To 250 kbit/s
• Low Active Current: 300 μA Typical
• Low Standby Current: 1 μA Typical
• External Capacitors: 4 × 0.1 μF
• Accepts 5-V Logic Input With 3.3-V Supply
• Always-Active Noninverting Receiver Output (ROUT2B)
• Operating Temperature
– MAX3243C: 0°C to 70°C
– MAX3243I: –40°C to 85°C
• Serial-Mouse Driveability
• Auto-Powerdown Feature to Disable Driver Outputs When No Valid RS-232 Signal Is Sensed
Applications of MAX3243CDB
• Battery-Powered Systems
• Tablets
• Notebooks
• Laptops
• Hand-Held Equipment
Environmental & Export Classifications of MAX3243CDB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
