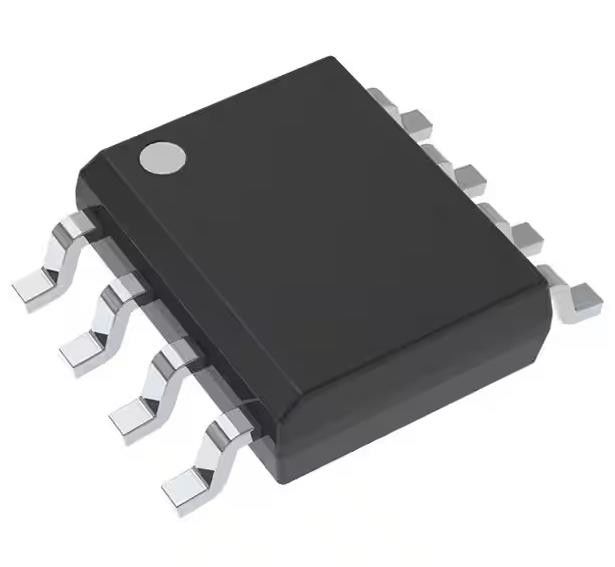

ISO7221BDR General Purpose Digital Isolator 2500Vrms 2 Channel 5Mbps 25kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7221BDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 2 | Channel Type: | Unidirectional |
|---|---|---|---|
| Voltage - Isolation: | 2500Vrms | Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 5Mbps | Propagation Delay TpLH / TpHL (Max): | 70ns, 70ns |
| Pulse Width Distortion (Max): | 3ns | Rise / Fall Time (Typ): | 1ns, 1ns |
Product Description
ISO7221BDR General Purpose Digital Isolator 2500Vrms 2 Channel 5Mbps 25kV/µs
Specifications of ISO7221BDR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 5Mbps |
| Propagation Delay tpLH / tpHL (Max) | 70ns, 70ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ISO7221 |
Specifications of ISO7221BDR
• 1, 5, 25, and 150-Mbps Signaling Rate Options
– Low Channel-to-Channel Output Skew; 1-ns Max
– Low Pulse-Width Distortion (PWD); 1-ns Max
– Low Jitter Content; 1 ns Typ at 150 Mbps
• 50 kV/μs Typical Transient Immunity
• Operates with 2.8-V (C-Grade),3.3-V, or 5-V Supplies
• 4-kV ESD Protection
• High Electromagnetic Immunity
• –40°C to +125°C Operating Range
• Typical 28-Year Life at Rated Voltage (see High-Voltage Lifetime of the ISO72x Family of Digital Isolators and Isolation Capacitor Lifetime Projection)
• Safety-Related Certifications
– VDE Basic Insulation with 4000-VPK VIOTM, 560 VPK VIORM per DIN VDE V 0884-11:2017-01 and DIN EN 61010-1 (VDE 0411-1)
– 2500 VRMS Isolation per UL 1577
– CSA Approved for IEC 60950-1 and IEC 62368-1
Applications of ISO7221BDR
• Industrial Fieldbus
– Modbus
– Profibus™
– DeviceNet™ Data Buses
• Computer Peripheral Interface
• Servo Control Interface
• Data Acquisition
Environmental & Export Classifications of ISO7221BDR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
