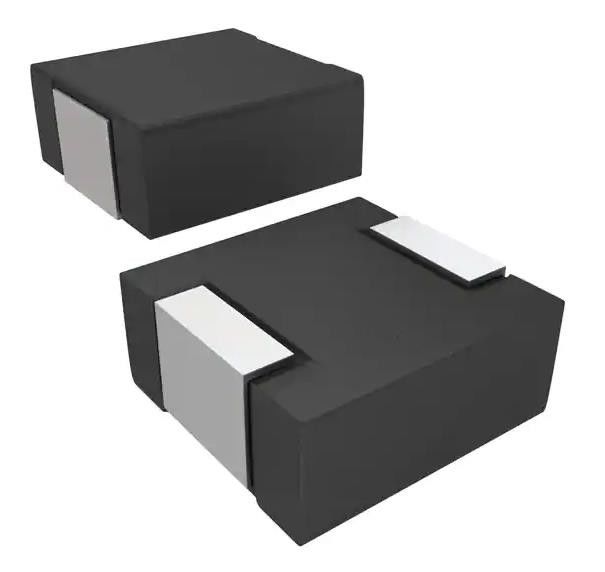

IHLP2525CZER220M5A 22 µH Shielded Molded Inductor 2.8 A 174mOhm
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IHLP2525CZER220M5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Inductance: | 22 µH | Tolerance: | ±20% |
|---|---|---|---|
| Current Rating (Amps): | 2.8 A | Current - Saturation (Isat): | 2.2A |
| Shielding: | Shielded | DC Resistance (DCR): | 174mOhm Max |
| Frequency - Self Resonant: | 8.3MHz | Ratings: | AEC-Q200 |
Product Description
IHLP2525CZER220M5A 22 µH Shielded Molded Inductor 2.8 A 174mOhm
Specifications of IHLP2525CZER220M5A
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Vishay Dale |
| Series | IHLP-2525CZ-5A |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Molded |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 2.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 174mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.3MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Specifications of IHLP2525CZER220M5A
• High temperature, up to 155 °C
• Shielded construction
• Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• AEC-Q200 qualified
Applications of IHLP2525CZER220M5A
• Engine and transmission control units
• Diesel injection drivers
• DC / DC converters for entertainment / navigation systems
• Noise suppression for motors: windshield wipers / power seats / power mirrors / heating and ventilation blower / HID lighting
• LED drivers
Environmental & Export Classifications of IHLP2525CZER220M5A
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
