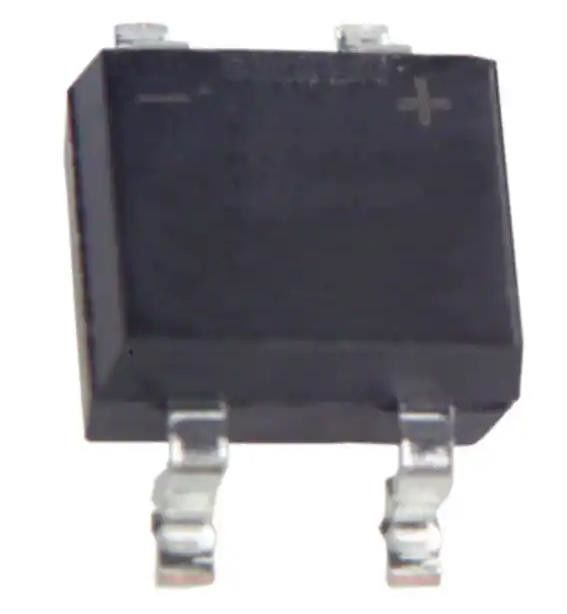

HD06-T Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-MiniDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HD06-T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Type: | Single Phase | Technology: | Standard |
|---|---|---|---|
| Voltage - Peak Reverse (Max): | 600 V | Current - Average Rectified (Io): | 800 MA |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 400 MA | Current - Reverse Leakage @ Vr: | 5 µA @ 600 V |
| Operating Temperature: | -55°C ~ 150°C (TJ) | Mounting Type: | Surface Mount |
Product Description
HD06-T Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-MiniDIP
Specifications of HD06-T
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Bridge Rectifiers | |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 800 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-MiniDIP |
| Base Product Number | HD06 |
Applications of HD06-T
• Glass Passivated Die Construction
• Low Forward Voltage Drop
• Surge Overload Rating to 30A Peak
• Ideally Suited for Automated Assembly
• Miniature Package Saves Space on PC Boards
• UL Listed Under Recognized Component Index, File Number E94661
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Specifications of HD06-T
• Case: MiniDIP
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Tin. Plated Leads,Solderable per MIL-STD-202, Method 208
• Polarity: As Marked on Case
• Marking: Product Type Marking Code, Date Code, & Polarity Markings
• Weight: 0.125 grams (Approximate)
Environmental & Export Classifications of HD06-T
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
