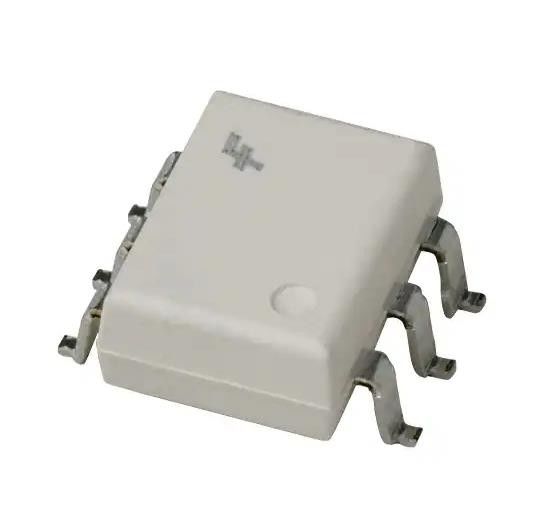

H11L1SR2M Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | H11L1SR2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Inputs - Side 1/Side 2: | 1/0 |
|---|---|---|---|
| Voltage - Isolation: | 4170Vrms | Input Type: | DC |
| Output Type: | Open Collector | Current - Output / Channel: | 50 MA |
| Data Rate: | 1MHz | Propagation Delay TpLH / TpHL (Max): | 4µs, 4µs |
Product Description
H11L1SR2M Logic Output Optoisolator 1MHz Open Collector 4170Vrms 1 Channel
Specifications of H11L1SR2M
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Logic Output Optoisolators | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 4170Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 3V ~ 15V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | H11L1 |
Features of H11L1SR2M
■ High Data Rate, 1 MHz Typical (NRZ)
■ Free from Latch-up and Oscilliation Throughout Voltage and Temperature Ranges
■ Microprocessor Compatible Drive
■ Logic Compatible Output Sinks 16 mA at 0.4 V Maximum
■ Guaranteed On/Off Threshold Hysteresis
■ Wide Supply Voltage Capability, Compatible with All Popular Logic Systems
■ Safety and Regulatory Approvals:
– UL1577, 4,170 VACRMS for 1 Minute
– DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage
Applications of H11L1SR2M
■ Logic-to-Logic Isolator
■ Programmable Current Level Sensor
■ Line Receiver—Eliminate Noise and Transient Problems
■ AC to TTL Conversion—Square Wave Shaping
■ Digital Programming of Power Supplies
■ Interfaces Computers with Peripherals
Environmental & Export Classifications of H11L1SR2M
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
