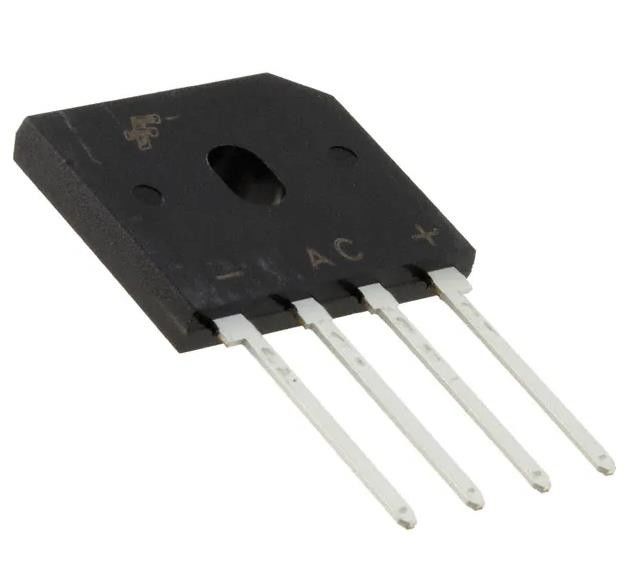

GBU8KS Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | GBU8KS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Type: | Single Phase | Technology: | Standard |
|---|---|---|---|
| Voltage - Peak Reverse (Max): | 800 V | Current - Average Rectified (Io): | 8:00 AM |
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 8 A | Current - Reverse Leakage @ Vr: | 5 µA @ 800 V |
| Operating Temperature: | -55°C ~ 150°C (TJ) | Package / Case: | 4-SIP, GBU |
Product Description
GBU8KS Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Specifications of GBU8KS
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Bridge Rectifiers | |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 8:00 AM |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 8 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Base Product Number | GBU8 |
Features of GBU8KS
• Short Lead GBU Option - see drawing for spec
• Glass-Passivated Junction
• Surge Overload Rating: 200 A Peak
• Reliable Low-Cost Construction Utilizing Molded Plastic Technique
• Ideal for Printed Circuit Board
• UL Certified: UL #E258596
Applications of GBU8KS
Stresses exceeding the absolute maximum ratings may damage the device.
Environmental & Export Classifications of GBU8KS
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
