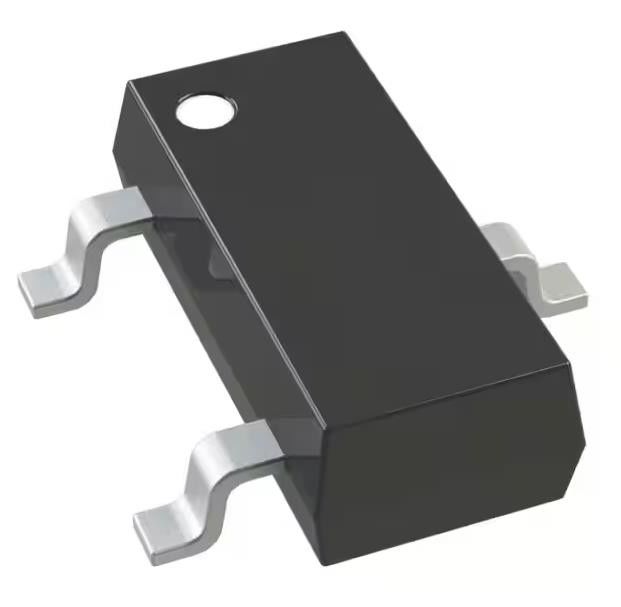

FMMT451TA Bipolar Transistor NPN 60 V 1 A 150MHz 500 mW Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FMMT451TA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Collector (Ic) (Max): | 0.041666667 | Voltage - Collector Emitter Breakdown (Max): | 60V |
|---|---|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 350mV @ 15mA, 150mA | Current - Collector Cutoff (Max): | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 50 @ 150mA, 10V | Power - Max: | 500 MW |
| Frequency - Transition: | 150MHz | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
FMMT451TA Bipolar Transistor NPN 60 V 1 A 150MHz 500 mW Surface Mount SOT-23-3
Specifications of FMMT451TA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 0.041666667 |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 350mV @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 150mA, 10V |
| Power - Max | 500 mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | FMMT451 |
Features of FMMT451TA
• BVCEO > 60V
• IC = 1A Continuous Collector Current
• ICM = 2A Peak Pulse Current
• 500mW Power Dissipation
• Complementary PNP Type: FMMT551
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Applications of FDMA3027PZ
• Case: SOT23
• Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208
• Weight 0.008 grams (approximate)
Environmental & Export Classifications of FDMA3027PZ
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
