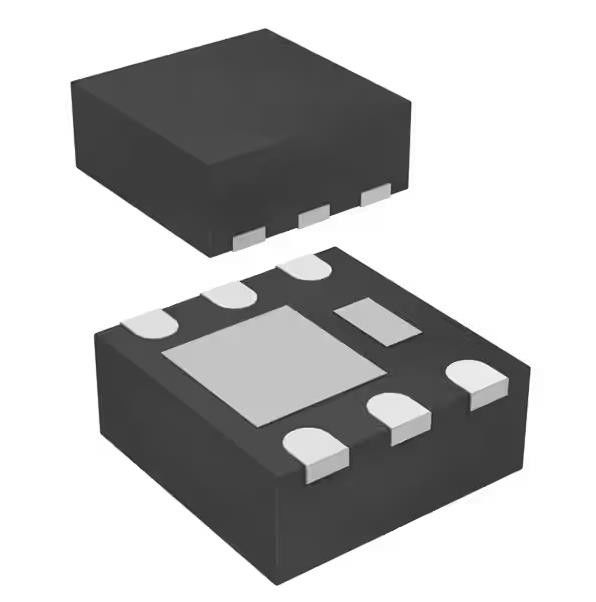

FDMA3027PZ Mosfet Array 30V 3.3A 700mW Surface Mount 6-MicroFET (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FDMA3027PZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| FET Feature: | Logic Level Gate | Drain To Source Voltage (Vdss): | 30V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 3.3A | Rds On (Max) @ Id, Vgs: | 87mOhm @ 3.3A, 10V |
| Vgs(th) (Max) @ Id: | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 10nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds: | 435pF @ 15V | Power - Max: | 700mW |
Product Description
FDMA3027PZ Mosfet Array 30V 3.3A 700mW Surface Mount 6-MicroFET (2x2)
Specifications of FDMA3027PZ
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Mfr | onsemi |
| Series | PowerTrench® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.3A |
| Rds On (Max) @ Id, Vgs | 87mOhm @ 3.3A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 435pF @ 15V |
| Power - Max | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-MicroFET (2x2) |
| Base Product Number | FDMA3027 |
Features of FDMA3027PZ
• Max RDS(on) = 87 m at VGS = −10 V, ID = −3.3 A
• Max RDS(on) = 152 m at VGS = −4.5 V, ID = −2.3 A
• HBM ESD Protection Level > 2 kV Typical (Note 3)
• Low Profile − 0.8 mm Maximum − in the New Package MicroFET 2x2 mm
• These Devices are Pb−Free and are RoHS Compliant
Applications of FDMA3027PZ
• Load Switch
• Discrete Gate Driver
Environmental & Export Classifications of FDMA3027PZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
