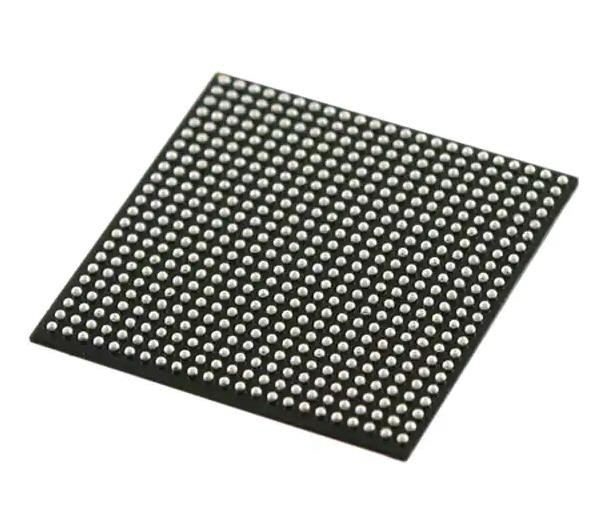

EP4CGX30CF23I7N IV GX Field Programmable Gate Array FPGA IC 290 1105920 484-BGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EP4CGX30CF23I7N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of LABs/CLBs: | 1840 | Number Of Logic Elements/Cells: | 29440 |
|---|---|---|---|
| Total RAM Bits: | 1105920 | Number Of I/O: | 290 |
| Voltage - Supply: | 1.16V ~ 1.24V | Operating Temperature: | -40°C ~ 100°C (TJ) |
Product Description
EP4CGX30CF23I7N IV GX Field Programmable Gate Array FPGA IC 290 1105920 484-BGA
Specifications of EP4CGX30CF23I7N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Intel |
| Series | Cyclone® IV GX |
| Package | Tray |
| Number of LABs/CLBs | 1840 |
| Number of Logic Elements/Cells | 29440 |
| Total RAM Bits | 1105920 |
| Number of I/O | 290 |
| Voltage - Supply | 1.16V ~ 1.24V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 484-BGA |
| Supplier Device Package | 484-FBGA (23x23) |
| Base Product Number | EP4CGX30 |
Features of EP4CGX30CF23I7N
■2,910 to 20,060 LEs, see Table 1
■ Up to 294,912 RAM bits (36,864 bytes)
■ Supports configuration through low-cost serial configuration device
■ Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards
■ Support for 66-MHz, 32-bit PCI standard
■ Low speed (311 Mbps) LVDS I/O support
■ Up to two PLLs per device provide clock multiplication and phase shifting
■ Up to eight global clock lines with six clock resources available per logic array block (LAB) row
■ Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM
■ Support for multiple intellectual property (IP) cores, including Altera MegaCore functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions
Applications of EP4CGX30CF23I7N
The CycloneTM field programmable gate array family is based on a 1.5-V,0.13-µm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM.
Environmental & Export Classifications of EP4CGX30CF23I7N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
