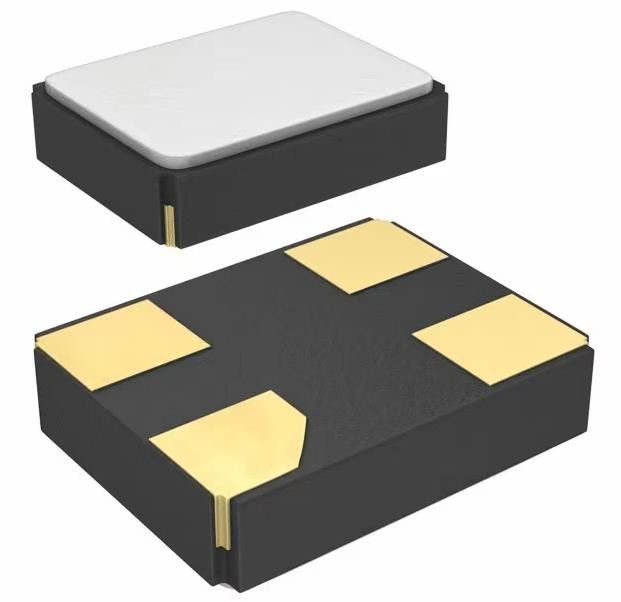

CX2016DB32000D0FLJCC 32 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CX2016DB32000D0FLJCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | MHz Crystal | Frequency: | 32 MHz |
|---|---|---|---|
| Frequency Stability: | ±15ppm | Frequency Tolerance: | ±10ppm |
| Load Capacitance: | 8pF | ESR (Equivalent Series Resistance): | 60 Ohms |
| Operating Mode: | Fundamental | Operating Temperature: | -30°C ~ 85°C |
Product Description
CX2016DB32000D0FLJCC 32 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Specifications of CX2016DB32000D0FLJCC
| TYPE | DESCRIPTION |
| Category | Crystals, Oscillators, Resonators |
| Crystals | |
| Mfr | KYOCERA AVX |
| Series | CX2016DB, Kyocera |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | MHz Crystal |
| Frequency | 32 MHz |
| Frequency Stability | ±15ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -30°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Features of CX2016DB32000D0FLJCC
• Crystal unit for Consumer Products
• Ultra-miniature and low profile (2.0×1.6×0.40mm)
• Ceramic package
• Reflow compatible
Applications of CX2016DB32000D0FLJCC
• Digital Electronics
• Consumer Products
Environmental & Export Classifications of CX2016DB32000D0FLJCC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.60.0060 |
