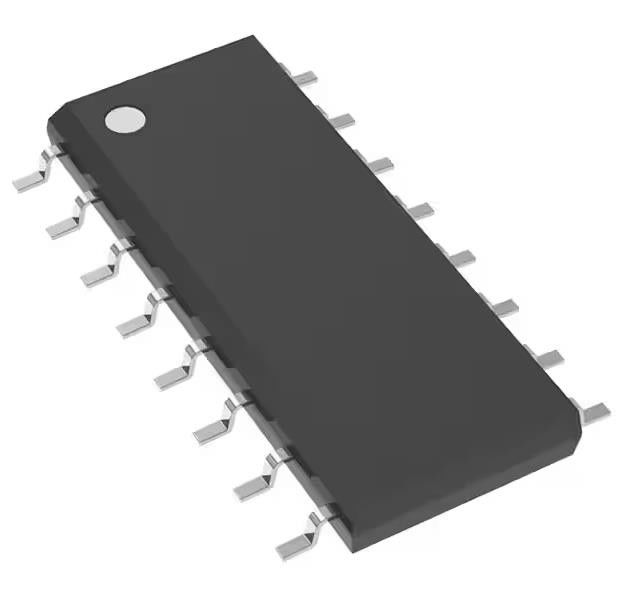

CD4512BM96 Integrated Circuit Chip Data Selector/Multiplexer 1 x 8:1 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD4512BM96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Data Selector/Multiplexer | Data Selector/Multiplexer: | 1 X 8:1 |
|---|---|---|---|
| Independent Circuits: | 1 | Current - Output High, Low: | 6.8mA, 6.8mA |
| Voltage Supply Source: | Dual Supply | Voltage - Supply: | 3V ~ 18V |
| Operating Temperature: | -55°C ~ 125°C | Base Product Number: | CD4512 |
Product Description
CD4512BM96 Integrated Circuit Chip Data Selector/Multiplexer 1 x 8:1 16-SOIC
Specifications of CD4512BM96
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Texas Instruments |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Data Selector/Multiplexer |
| Circuit | 1 x 8:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | CD4512 |
Features of CD4512BM96
* 3-state output
* Standardized, symmetrical output characteristics
* 100% tested for quiescent current at 20 V
* 5-V, 10-V, and 15-V parametric ratingsm
* Maximum input current of 1 pA at 18 V over full packagetemperature range; 100 nA at 18 V and 25C
* Noise margin (over full package-temperature range):1Vat VDD= 5V2Vat VDD=10 V2.5 V at VDD=15 V
Applications of CD4512BM96
* 3-state output
* Standardized, symmetrical output characteristics
* 100% tested for quiescent current at 20 V
* 5-V, 10-V, and 15-V parametric ratingsm
* Maximum input current of 1 pA at 18 V over full packagetemperature range; 100 nA at 18 V and 25C
* Noise margin (over full package-temperature range):1Vat VDD= 5V2Vat VDD=10 V2.5 V at VDD=15 V
Environmental & Export Classifications of CD4512BM96
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
