CC110LRGPR IC RF TxRx Only General ISM < 1GHz 300MHz ~ 348MHz, 387MHz ~ 464MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC110LRGPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | TxRx Only | RF Family/Standard: | General ISM < 1GHz |
|---|---|---|---|
| Modulation: | 2FSK, 4FSK, GFSK, MSK, OOK | Frequency: | 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz |
| Data Rate (Max): | 600kbps | Power - Output: | 12dBm |
| Sensitivity: | -116dBm | Voltage - Supply: | 1.8V ~ 3.6V |
Product Description
CC110LRGPR IC RF TxRx Only General ISM < 1GHz 300MHz ~ 348MHz, 387MHz ~ 464MHz
Specifications of CC110LRGPR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | TxRx Only |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | - |
| Modulation | 2FSK, 4FSK, GFSK, MSK, OOK |
| Frequency | 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz |
| Data Rate (Max) | 600kbps |
| Power - Output | 12dBm |
| Sensitivity | -116dBm |
| Memory Size | - |
| Serial Interfaces | SPI |
| Voltage - Supply | 1.8V ~ 3.6V |
| Current - Receiving | 14.3mA ~ 17.1mA |
| Current - Transmitting | 12.3mA ~ 34.2mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

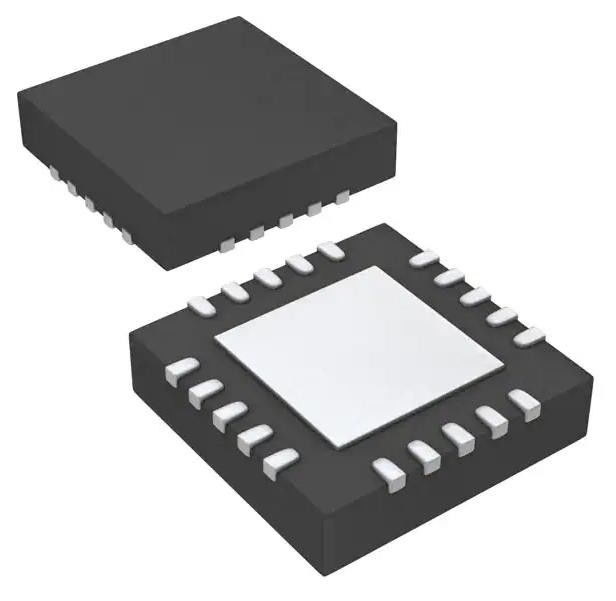

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Base Product Number | CC110 |
Features of CC110LRGPR
• RF Performance
– Programmable Output Power up to +12 dBm
– Receive Sensitivity Down to −116 dBm at 0.6 kbps
– Programmable Data Rate from 0.6 to 600 kbps
– Frequency Bands: 300–348 MHz,387–464 MHz, and 779–928 MHz
– 2-FSK, 4-FSK, GFSK, MSK, and OOK Supported
Applications of CC110LRGPR
• Ultra Low-Power Wireless Applications Operating in the 315-, 433-, 868-, 915-MHz ISM or SRD Bands
• Wireless Alarm and Security Systems
• Industrial Monitoring and Control
• Remote Controls
• Toys
• Home and Building Automation
Environmental & Export Classifications of CC110LRGPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991G |
| HTSUS | 8542.39.0001 |
