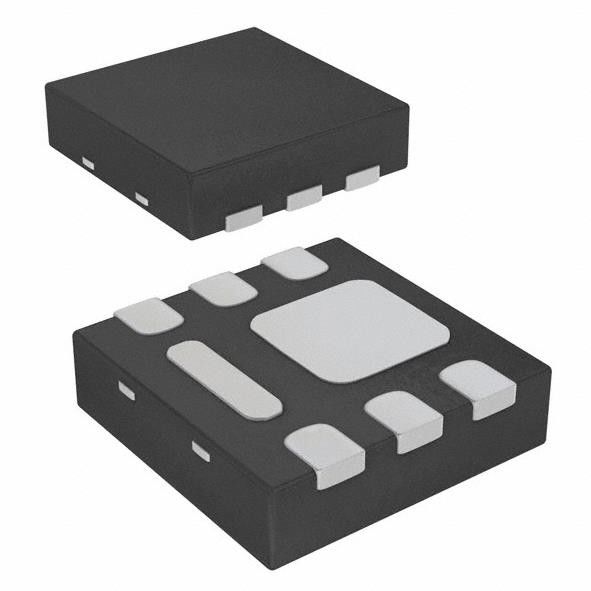

AON2405 P-Channel 20 V 8A (Ta) 2.8W (Ta) Surface Mount 6-DFN (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AON2405 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 20 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 8A (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs: | 32mOhm @ 8A, 4.5V | Vgs(th) (Max) @ Id: | 900mV @ 250µA |
Product Description
AON2405 P-Channel 20 V 8A (Ta) 2.8W (Ta) Surface Mount 6-DFN (2x2)
Specifications of AON2405
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 8A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1025 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DFN (2x2) |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | AON24 |
The AON2405 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for load switch and battery protection applications.
Environmental & Export Classifications of AON2405
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
