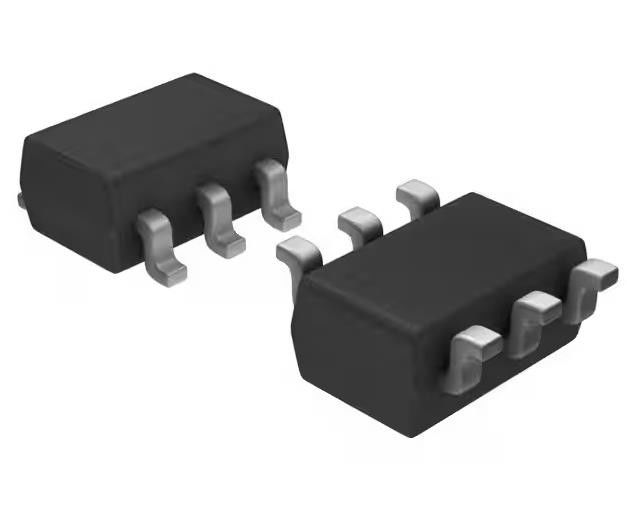

ADS1000A1IDBVR 12 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS1000A1IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 128 |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Differential, Single Ended |
| Data Interface: | I²C | Configuration: | PGA-ADC |
Product Description
ADS1000A1IDBVR 12 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6
Specifications of ADS1000A1IDBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 128 |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | I²C |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Mounting Type | Surface Mount |
| Base Product Number | ADS1000 |
Features of ADS1000A1IDBVR
* Complete 12-Bit Data Acquisition System ina Tiny SOT-23 Package
* Low Current Consumption: Only 90pA
* Integral Nonlinearity: 1LSB Max
* Single-Cycle Conversion
* Programmable Gain AmplifierGain = 1, 2, 4, or 8
* 128SPS Data Rate
* I2C Interface with Two Available Addresses
* Power Supply: 2.7V to 5.5V
* Pin- and SoftwareCompatible with 16-Bit ADS1100
Applications of ADS1000A1IDBVR
* Voltage Monitors
* Battery Management
* Industrial Process Control
* Consumer Goods
* Temperature Measurement
Environmental & Export Classifications of ADS1000A1IDBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
