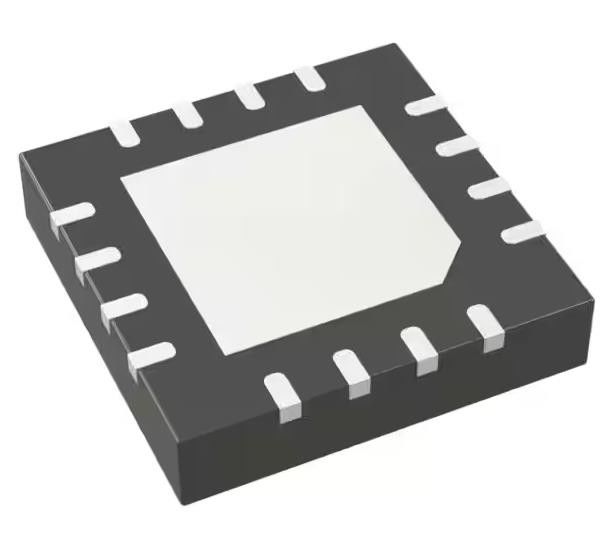

ADG658YCPZ 1 Circuit IC Switch 8:1 75Ohm 16-LFCSP-VQ (4x4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADG658YCPZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Multiplexer/Demultiplexer Circuit: | 8:01 | Number Of Circuits: | 1 |
|---|---|---|---|
| On-State Resistance (Max): | 75Ohm | Channel-to-Channel Matching (ΔRon): | 1.3Ohm |
| Voltage - Supply, Single (V+): | 2V ~ 12V | Voltage - Supply, Dual (V±): | ±2V ~ 6V |
Product Description
ADG658YCPZ 1 Circuit IC Switch 8:1 75Ohm 16-LFCSP-VQ (4x4)
Specifications of ADG658YCPZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tray |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 115ns, 45ns |
| -3db Bandwidth | 210MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Base Product Number | ADG658 |
Features of ADG658YCPZ
* ±2 V to ±6 V dual supply
* 2 V to 12 V single supply
* Automotive temperature range −40°C to +125°C
* <0.1 nA leakage currents
* 45 Ω on resistance over full signal range
* Rail-to-rail switching operation
* Single 8-to-1 multiplexer ADG658
* Differential 4-to-1 multiplexer ADG659
* 16-lead LFCSP/TSSOP/QSOP packages
* Typical power consumption <0.1 μW
* TTL/CMOS compatible inputs
* Package upgrades to 74HC4051/74HC4052 and MAX4051/MAX4052/MAX4581/MAX4582
Applications of ADG658YCPZ
* Automotive applications
* Automatic test equipment
* Data acquisition systems
* Battery-powered systems
* Communication systems
* Audio and video signal routing
* Relay replacement
* Sample-and-hold systems
* Industrial control systems
Environmental & Export Classifications of ADG658YCPZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
