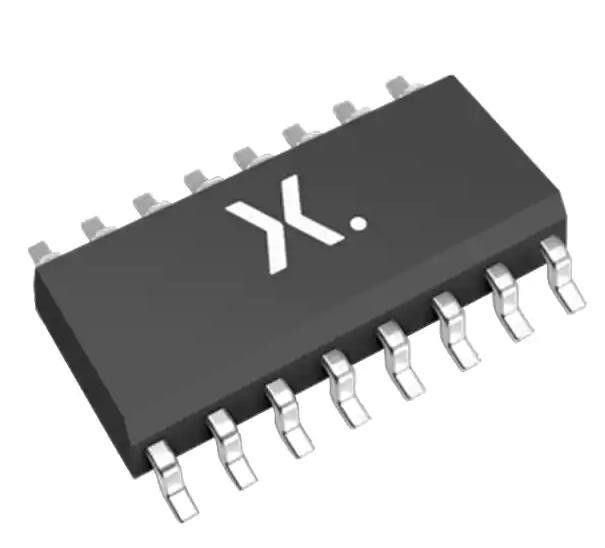

74HC4017D,653 Counter IC Counter, Decade 1 Element 5 Bit Positive, Negative 16-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2450AT18B100E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Direction: | Up | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 5 | Reset: | Asynchronous |
| Timing: | Synchronous | Count Rate: | 83 MHz |
| Trigger Type: | Positive, Negative | Voltage - Supply: | 2 V ~ 6 V |
Product Description
74HC4017D,653 Counter IC Counter, Decade 1 Element 5 Bit Positive, Negative 16-SO
Specifications of 74HC4017D,653
| TYPE | DESCRIPTION |
| Logic | |
| Counters, Dividers | |
| Mfr | Nexperia USA Inc. |
| Series | 74HC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Direction | Up |
| Number of Elements | 1 |
| Number of Bits per Element | 5 |
| Reset | Asynchronous |
| Timing | Synchronous |
| Count Rate | 83 MHz |
| Trigger Type | Positive, Negative |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | 74HC4017 |
Features of 74HC4017D,653
• Wide supply voltage range from 2.0 V to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Complies with JEDEC standards:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Input levels:
• For 74HC4017: CMOS level
• For 74HCT4017: TTL level
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Applications of 74HC4017D,653
The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR).
Environmental & Export Classifications of 74HC4017D,653
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
