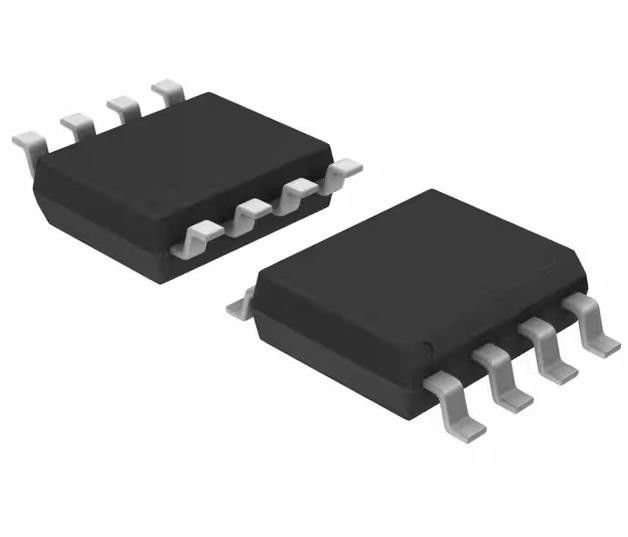

MIC4224YM Low-Side Gate Integrated Circuit Chip Driver IC Non-Inverting 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MIC4224YM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Independent |
|---|---|---|---|
| Number Of Drivers: | 2 | Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 18V | Logic Voltage - VIL, VIH: | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink): | 4A, 4A | Rise / Fall Time (Typ): | 15ns, 15ns |
Product Description
MIC4224YM Low-Side Gate Integrated Circuit Chip Driver IC Non-Inverting 8-SOIC
Specifications of MIC4224YM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MIC4224 |
Features of MIC4224YM
• 4.5V to 18V supply voltage operating range
• High peak source/sink current
– ±3A at VDD = 8V
– ±4A at VDD = 12V
• 15ns/15ns Rise and Fall times with 2000pF load
• 25ns/35ns (Rising/Falling) input propagation delay
• 20ns/45ns (Rising/Falling) enable propagation delay
• Active-high driver enable inputs with 100kΩ pull-ups
• CMOS and TTL logic input and enable thresholds independent of supply voltage
• Driver input protection to -5V at -40mA
• Output Latch-up protection to >500mA reverse current
• Industry standard pin out with two package options
– ePAD MSOP-8 (θJA = 60°C/W)
– 8-pin SOIC (θJA = 120°C/W)
• Available in dual-inverting (MIC4223), dual noninverting (MIC4224) and complementary (MIC4225)
• Dual output drive by paralleling channels
• -40°C to +125°C operating junction temperature range
Decriptions of MIC4224YM
• High-Efficiency MOSFET switching
• Switch mode power supplies
• DC-to-DC converters
• Motor and solenoid drivers
• Clock and line drivers
• Synchronous rectifiers
• Pulse transformer drive
• Class D switching amplifiers
