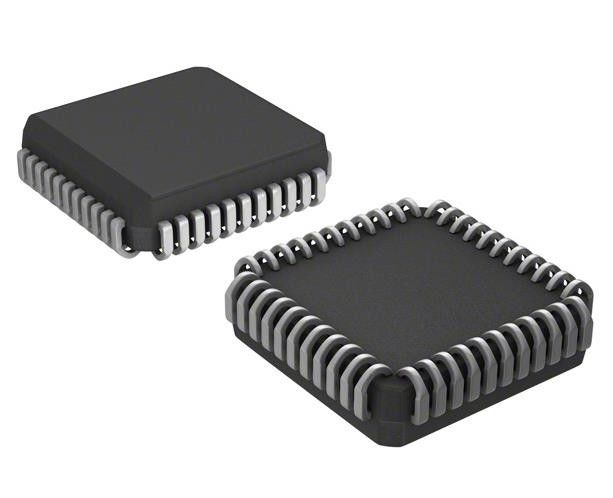

ATF1500A-10JU Integrated Circuit Chip IC CPLD 32MC 10NS 44PLCC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATF1500A-10JU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Resistance: | 10.7 KOhms | Tolerance: | ±0.1% |
|---|---|---|---|
| Power (Watts): | 0.1W, 1/10W | Composition: | Metal Film |
| Temperature Coefficient: | ±25ppm/°C | Operating Temperature: | -55°C ~ 155°C |
| Number Of Terminations: | 2 | Size / Dimension: | 0.063" L X 0.031" W (1.60mm X 0.80mm) |
Product Description
ATF1500A-10JU Integrated Circuit Chip IC CPLD 32MC 10NS 44PLCC
Specifications of ATF1500A-10JU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Mfr | Microchip Technology |
| Series | ATF15xx |
| Package | Tube |
| Programmable Type | In System Programmable (min 100 program/erase cycles) |
| Delay Time tpd(1) Max | 10 ns |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of Macrocells | 32 |
| Number of I/O | 32 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.6x16.6) |
| Base Product Number | ATF1500 |
Features of ATF1500A-10JU
• High-density, High-performance Electrically-erasable Complex Programmable Logic Device
– 44-pin, 32 I/O CPLD
– 7.5 ns Maximum Pin-to-pin Delay
– Registered Operation Up to 125 MHz
– Fully Connected Input and Feedback Logic Array
– Backward Compatibility with ATF1500/L Software and Hardware
• Flexible Logic Macrocell
– D/T/Latch Configurable Flip-flops
– Global and Individual Register Control Signals
– Global and Individual Output Enable
– Programmable Output Slew Rate
• Advanced Power Management Features
– Automatic 3 mA Standby (ATF1500AL)
– Pin-controlled 10 mA Standby Mode
– Programmable Pin-keeper Inputs and I/Os
• Available in Commercial and Industrial Temperature Ranges
• Available in 44-lead PLCC and TQFP Packages
• Advanced Flash Technology
– 100% Tested
– Completely Reprogrammable
– 100 Program/Erase Cycles
– 20 Year Data Retention
– 2000V ESD Protection
– 200 mA Latch-up Immunity
• Supported by Popular third-arty Tools
• Security Fuse Feature
• Pin-compatible with the Most Commonly Used Devices
• Green (Pb/Halide-fee/RoHS Compliant) Package Options
Decriptions of RN73H1JTTD1072B25
The ATF1500A is a high-performance, high-density complex PLD.
Environmental & Export Classifications of ATF1500A-10JU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
