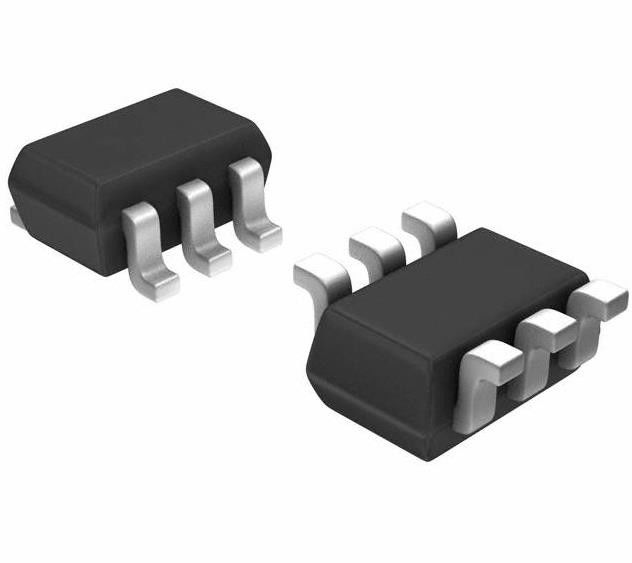

UMZ1NTR Bipolar Transistor Array NP NPNP 50V 150mA 180MHz 140MHz 150mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UMZ1NTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | NPN, PNP | Current - Collector (Ic) (Max): | 150mA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50V | Vce Saturation (Max) @ Ib, Ic: | 400mV @ 5mA, 50mA / 500mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max): | 100nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 120 @ 1mA, 6V |
| Power - Max: | 150mW | Frequency - Transition: | 180MHz, 140MHz |
Product Description
UMZ1NTR Bipolar Transistor Array NP NPNP 50V 150mA 180MHz 140MHz 150mW
Specifications of UMZ1NTR
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Bipolar Transistor Arrays | |
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Transistor Type | NPN, PNP |
| Current - Collector (Ic) (Max) | 150mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA / 500mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1mA, 6V |
| Power - Max | 150mW |
| Frequency - Transition | 180MHz, 140MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | UMT6 |
| Base Product Number | UMZ1 |
Features of UMZ1NTR
1) Both a 2SA1037AK chip and 2SC2412K chip in a EMT or UMT or SMT package.
2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.
3) Transistor elements are independent, eliminating interference.
4) Mounting cost and area can be cut in half
Decriptions of UMZ1NTR
GENERAL PURPOSE SMALL SIGNAL AMPLIFIER
Environmental & Export Classifications of UMZ1NTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0075 |
