LTC2253IUH#PBF 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC2253IUH#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 125M |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Differential, Single Ended |
| Configuration: | S/H-ADC | Ratio - S/H:ADC: | 1:01 |
| Number Of A/D Converters: | 1 | Architecture: | Pipelined |
Product Description
LTC2253IUH#PBF 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-QFN
Specifications of LTC2253IUH#PBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V |
| Voltage - Supply, Digital | 2.85V ~ 3.4V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |

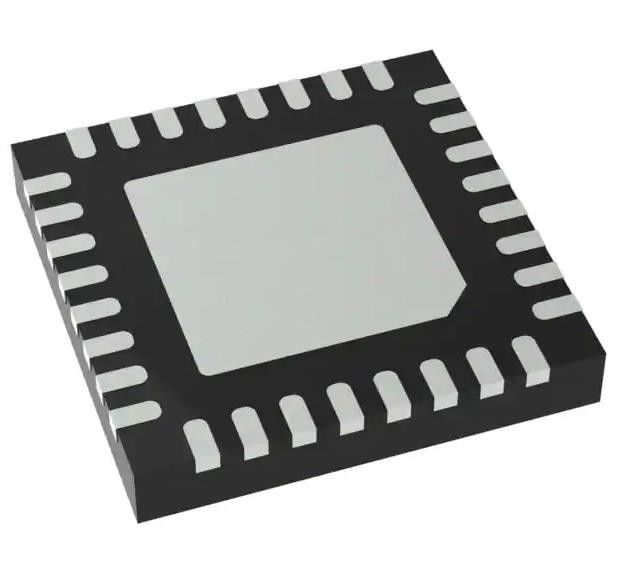

| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | LTC2253 |
Features of LTC2253IUH#PBF
■ Sample Rate: 125Msps/105Msps
■ Single 3V Supply (2.85V to 3.4V)
■ Low Power: 395mW/320mW
■ 70.2dB SNR
■ 88dB SFDR
■ No Missing Codes
■ Flexible Input: 1VP-P to 2VP-P Range
■ 640MHz Full Power Bandwidth S/H
■ Clock Duty Cycle Stabilizer
■ Shutdown and Nap Modes
■ Pin Compatible Family
-125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)
-105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)
-80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
-65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
-40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
-25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
-10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)
■ 32-Pin (5mm × 5mm) QFN Package
Decriptions of LM60CIM3/NOPB
■ Wireless and Wired Broadband Communication
■ Imaging Systems
■ Ultrasound
■ Spectral Analysis
■ Portable Instrumentation
Environmental & Export Classifications of LTC2253IUH#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991C2 |
| HTSUS | 8542.39.0001 |
