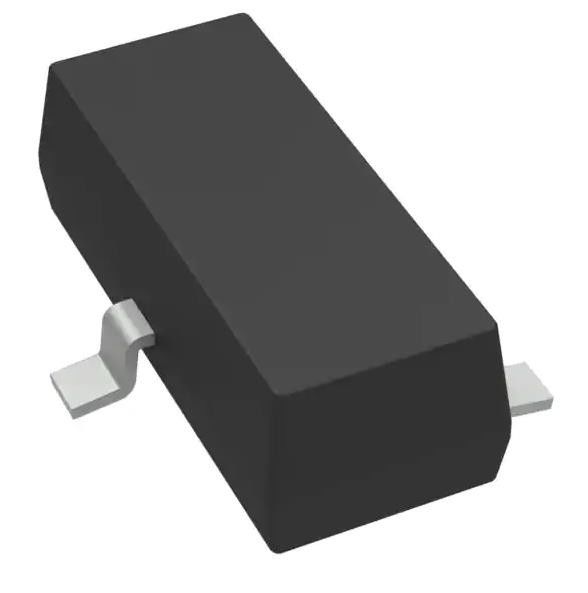

LM60CIM3/NOPB Temperature Sensor Analog, Local -40°C ~ 125°C 6.25mV/°C SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM60CIM3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Sensor Type: | Analog, Local | Sensing Temperature - Local: | -40°C ~ 125°C |
|---|---|---|---|
| Output Type: | Analog Voltage | Voltage - Supply: | 2.7V ~ 10V |
| Resolution: | 6.25mV/°C | Accuracy - Highest (Lowest): | ±3°C (±4°C) |
| Test Condition: | 25°C (-40°C ~ 125°C) | Operating Temperature: | -40°C ~ 125°C |
Product Description
LM60CIM3/NOPB Temperature Sensor Analog, Local -40°C ~ 125°C 6.25mV/°C SOT-23-3
Specifications of LM60CIM3/NOPB
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Sensor Type | Analog, Local |
| Sensing Temperature - Local | -40°C ~ 125°C |
| Sensing Temperature - Remote | - |
| Output Type | Analog Voltage |
| Voltage - Supply | 2.7V ~ 10V |
| Resolution | 6.25mV/°C |
| Features | - |
| Accuracy - Highest (Lowest) | ±3°C (±4°C) |
| Test Condition | 25°C (-40°C ~ 125°C) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM60 |
Features of LM60CIM3/NOPB
• Calibrated Linear Scale Factor of 6.25 mV/°C
• Rated for Full −40°C to +125°C Range
• Suitable for Remote Applications
• Available in SOT-23 and TO-92 Packages
• Key Specifications
– Accuracy at 25°C: ±2°C and ±3°C (Maximum)
– Accuracy for −40°C to +125°C: ±4°C (Maximum)
– Accuracy for −25°C to +125°C: ±3°C (Maximum)
– Temperature Slope: 6.25 mV/°C
– Power-Supply Voltage Range: 2.7 V to 10 V
– Current Drain at 25°C: 110 μA (Maximum)
– Nonlinearity: ±0.8°C (Maximum)
– Output Impedance: 800 Ω (Maximum)
Decriptions of LM60CIM3/NOPB
• Cell Phones and Computers
• Power Supply Modules
• Battery Management
• Fax Machines and Printers
• HVAC and Disk Drives
• Appliances
Environmental & Export Classifications of LM60CIM3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
