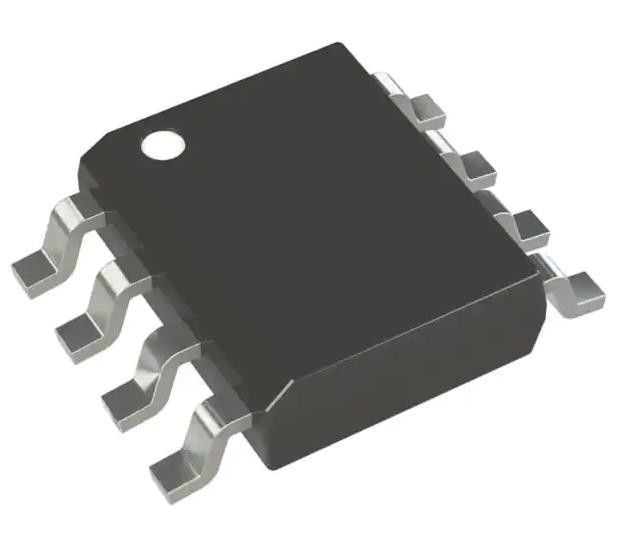

MCP1407T-E/SN Low-Side Gate Integrated Circuit Chip Driver IC Non-Inverting 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MCP1407T-E/SN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Single |
|---|---|---|---|
| Number Of Drivers: | 1 | Gate Type: | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 18V | Logic Voltage - VIL, VIH: | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink): | 6A, 6A | Input Type: | Non-Inverting |
Product Description
MCP1407T-E/SN Low-Side Gate Integrated Circuit Chip Driver IC Non-Inverting 8-SOIC
Specifications of MCP1407T-E/SN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MCP1407 |
Features of MCP1407T-E/SN
• High Peak Output Current: 6.0A (typical)
• Low Shoot-Through/Cross-Conduction Current in Output Stage
• Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
• High Capacitive Load Drive Capability:
- 2500 pF in 20 ns
- 6800 pF in 40 ns
• Short Delay Times: 40 ns (typical)
• Matched Rise/Fall Times
• Low Supply Current:
- With Logic ‘1’ Input – 130 µA (typical)
- With Logic ‘0’ Input – 35 µA (typical)
• Latch-Up Protected: Will Withstand 1.5A Reverse Current
• Logic Input Will Withstand Negative Swing up to 5V
• Pin compatible with the TC4420/TC4429 devices
• Space-saving 8-Pin SOIC, PDIP and 8-Pin 6 x 5 mm DFN Packages
Decriptions of MCP1407T-E/SN
• Switch Mode Power Supplies
• Pulse Transformer Drive
• Line Drivers
• Motor and Solenoid Drive
Environmental & Export Classifications of MCP1407T-E/SN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
