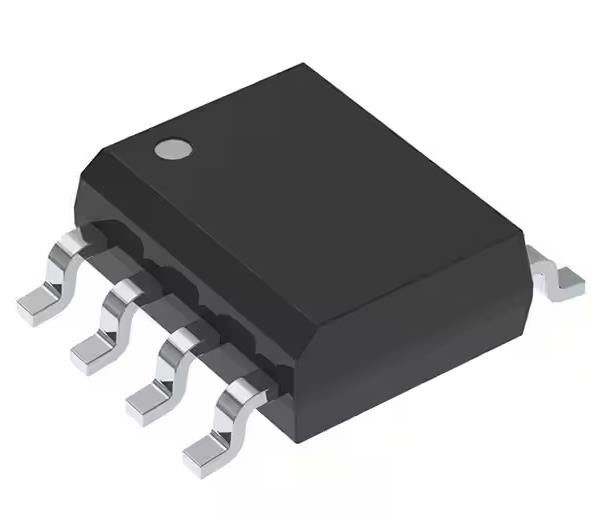

AUIRS2127STR High-Side Gate Driver IC Non-Inverting 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AUIRS2127STR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Channel Type: | Single | Number Of Drivers: | 1 |
|---|---|---|---|
| Gate Type: | IGBT, N-Channel MOSFET | Voltage - Supply: | 12V ~ 20V |
| Logic Voltage - VIL, VIH: | 0.8V, 2.5V | Current - Peak Output (Source, Sink): | 290mA, 600mA |
| Input Type: | Non-Inverting | High Side Voltage - Max (Bootstrap): | 600 V |
Product Description
AUIRS2127STR High-Side Gate Driver IC Non-Inverting 8-SOIC
Specifications of AUIRS2127STR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 12V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AUIRS2127 |
Features of AUIRS2127STR
• Floating channel designed for bootstrap operation
• Fully operational to +600 V
• Tolerant to negative transient voltage – dV/dt immune
• Application-specific gate drive range: Motor Drive: 12 V to 20 V (AUIRS2127/AUIRS2128) Automotive: 9 V to 20 V (AUIRS21271/AUIRS21281)
• Undervoltage lockout
• Desaturation Over Current Protection
• 3.3 V, 5 V, and 15 V input logic compatible
• FAULT lead indicates shutdown has occurred
• Output in phase with input (AUIRS2127/AUIRS21271)
• Output out of phase with input (AUIRS2128/AUIRS21281)
• Lead-free, RoHS compliant
• Automotive qualified*
Decriptions of AUIRS2127STR
• Fork Lift motor drives
• hydraulic pumps
• IGBT drive with Desaturation Detection
• General purpose three phase inverters
Environmental & Export Classifications of AUIRS2127STR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
