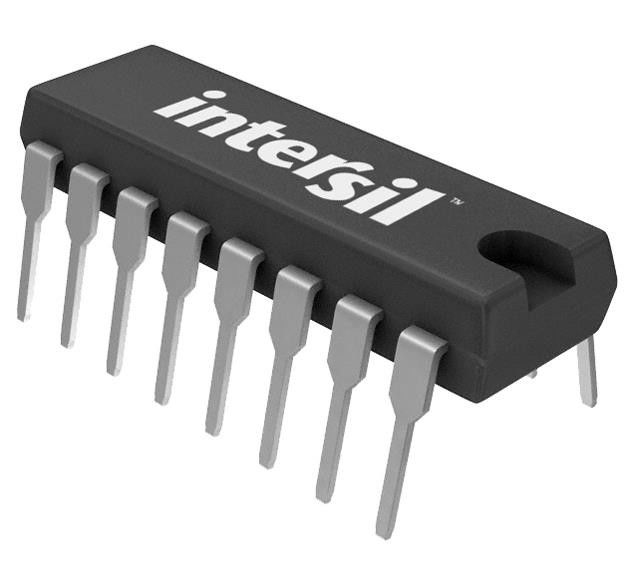

CDP68HC68T1EZ Real Time Clock (RTC) IC Clock/Calendar 32B SPI 16-DIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDP68HC68T1EZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Alarm, Leap Year, Square Wave Output, Watchdog Timer | Type: | Clock/Calendar |
|---|---|---|---|
| Memory Size: | 32B | Time Format: | HH:MM:SS (12/24 Hr) |
| Date Format: | YY-MM-DD-dd | Voltage - Supply: | 3V ~ 6V |
| Voltage - Supply, Battery: | 2.2V ~ 6V | Current - Timekeeping (Max): | 20µA ~ 500µA @ 5V |
Product Description
CDP68HC68T1EZ Real Time Clock (RTC) IC Clock/Calendar 32B SPI 16-DIP
Specifications of CDP68HC68T1EZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Real Time Clocks | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tray |
| Type | Clock/Calendar |
| Features | Alarm, Leap Year, Square Wave Output, Watchdog Timer |
| Memory Size | 32B |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | SPI |
| Voltage - Supply | 3V ~ 6V |
| Voltage - Supply, Battery | 2.2V ~ 6V |
| Current - Timekeeping (Max) | 20µA ~ 500µA @ 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | CDP68HC68 |
Features of CDP68HC68T1EZ
• SPI (Serial Peripheral Interface)
• Full Clock Features
- Seconds, Minutes, Hours (12/24, AM/PM), Day of Week, Date, Month, Year (0 to 99), Automatic Leap Year
• 32 Wordx8-Bit RAM
• Seconds, Minutes, Hours Alarm
• Automatic Power Loss Detection
• Low Minimum Standby (Timekeeping) Voltage . . . . . 2.2V
• Selectable Crystal or 50/60Hz Line Input
• Buffered Clock Output
• Battery Input Pin that Powers Oscillator and also Connects to VDD Pin When Power Fails
• Three Independent Interrupt Modes
- Alarm
- Periodic
- Power-Down Sense
• Pb-Free Available (RoHS Compliant)
Decriptions of CDP68HC68T1EZ
The CDP68HC68T1 Real-Time Clock provides a time/calendar function, a 32 byte static RAM, and a 3 wire Serial Peripheral Interface (SPI Bus).
Environmental & Export Classifications of CDP68HC68T1EZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
