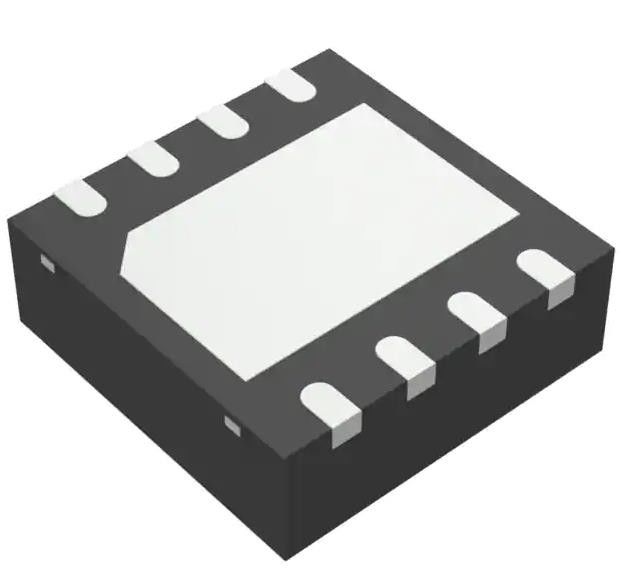

TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS28225TDRBRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Current Sense | Number Of Circuits: | 1 |
|---|---|---|---|
| Output Type: | Single-Ended | Slew Rate: | 0.4V/µs |
| Gain Bandwidth Product: | 80 KHz | Current - Input Bias: | 28 µA |
| Voltage - Input Offset: | 5 µV | Current - Supply: | 65µA |
Product Description
TPS28225TDRBRQ1 Half-Bridge Gate Driver IC Non-Inverting 8-SON (3x3)
Specifications of TPS28225TDRBRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 8.8V |
| Logic Voltage - VIL, VIH | 0.8V, 2.1V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 33 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
| Base Product Number | TPS28225 |
Features of TPS28225TDRBRQ1
• Qualified for automotive applications
• Drives two N-channel MOSFETs with 14-ns adaptive dead time
• Wide gate drive voltage: 4.5 V up to 8.8 V with best efficiency at 7 V to 8 V
• Wide power system train input voltage: 3 V up to 27 V
• Wide input PWM signals: 2-V up to 13.2-V amplitude
• Capable of driving MOSFETs with ≥40-A current per phase
• High frequency operation: 14-ns propagation delay and 10-ns rise or fall time allows FSW up to 2 MHz
• Capable of propagating <30-ns input PWM pulses
• Low-side driver sink on-resistance (0.4 Ω) prevents dV/dT related shoot-through current
• Three-state PWM input for power stage shutdown
• Space saving enable (input) and power good (output) signals on the same pin
• Thermal shutdown
• UVLO protection
• Internal bootstrap diode
• Economical SOIC-8 and thermally enhanced 3-mm × 3-mm VSON-8 packages
• High performance replacement for popular three-state input drivers
Decriptions of TPS28225TDRBRQ1
• Multi-phase DC-to-DC converters with analog or digital control
• Synchronous rectification for isolated point of load
• Wireless charging transmitter
Environmental & Export Classifications of TPS28225TDRBRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
