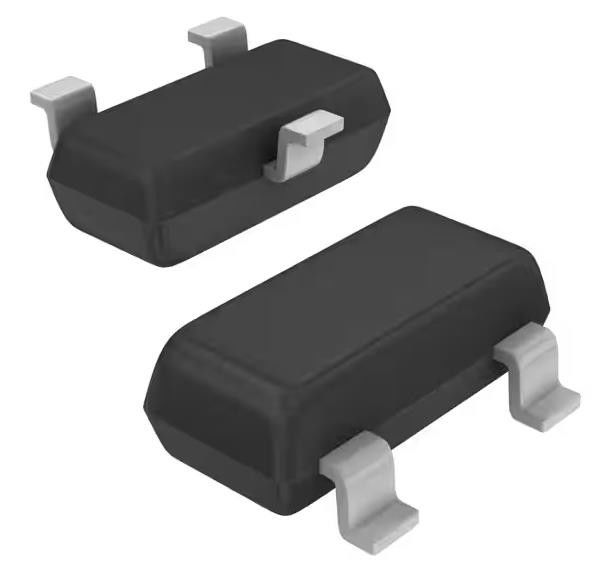

SZMMBZ18VALT1G 25V Clamp 1.6A Ipp Tvs Diode Surface Mount SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZMMBZ18VALT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Unidirectional Channels: | 2 | Voltage - Reverse Standoff (Typ): | 14.5V |
|---|---|---|---|
| Voltage - Breakdown (Min): | 17.1V | Voltage - Clamping (Max) @ Ipp: | 25V |
| Current - Peak Pulse (10/1000µs): | 1.6A | Power - Peak Pulse: | 40W |
| Applications: | Automotive | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
SZMMBZ18VALT1G 25V Clamp 1.6A Ipp Tvs Diode Surface Mount SOT-23-3
Specifications of SZMMBZ18VALT1G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 14.5V |
| Voltage - Breakdown (Min) | 17.1V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 1.6A |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | SZMMBZ18 |
Features of SZMMBZ18VALT1G
• SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
• Standard Zener Breakdown Voltage Range − 5.6 V to 47 V
• Peak Power − 24 or 40 W @ 1.0 ms (Unidirectional), per Figure 6 Waveform
• ESD Rating:
− Class 3B (> 16 kV) per the Human Body Model
− Class C (> 400 V) per the Machine Model
• ESD Rating of IEC61000−4−2 Level 4, ±30 kV Contact Discharge
• Maximum Clamping Voltage @ Peak Pulse Current
• Low Leakage < 5.0 A
• Flammability Rating UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Decriptions of SZMMBZ18VALT1G
These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability.
Environmental & Export Classifications of SZMMBZ18VALT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
