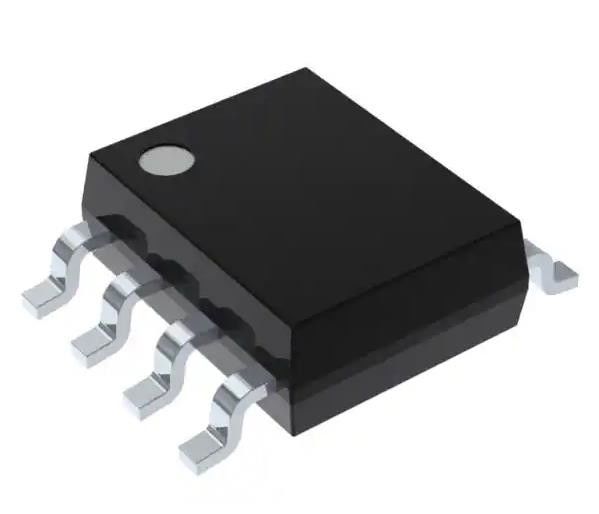

MAX942CSA+ Comparator General Purpose CMOS Push-Pull TTL 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX942CSA+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 2 | Output Type: | CMOS, Push-Pull, TTL |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±): | 2.7V ~ 5.5V | Voltage - Input Offset (Max): | 2mV @ 5.5V |
| Current - Input Bias (Max): | 0.15µA @ 5.5V | Current - Quiescent (Max): | 600µA |
| CMRR,PSRRRR (Typ): | 81.94dB CMRR, 81.94dB PSRR | Propagation Delay (Max): | 80ns |
Product Description
MAX942CSA+ Comparator General Purpose CMOS Push-Pull TTL 8-SOIC
Specifications of MAX942CSA+
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Type | CMOS, Push-Pull, TTL |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 2mV @ 5.5V |
| Current - Input Bias (Max) | 0.15µA @ 5.5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 600µA |
| CMRR, PSRR (Typ) | 81.94dB CMRR, 81.94dB PSRR |
| Propagation Delay (Max) | 80ns |
| Hysteresis | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX942 |
Features of MAX942CSA+
● Available in μMAX Package
● Optimized for 3V and 5V Applications (Operation Down to 2.7V)
● Fast, 80ns Propagation Delay (5mV Overdrive)
● Rail-to-Rail Input Voltage Range
● Low 350μA Supply Current per Comparator
● Low, 1mV Offset Voltage
● Internal Hysteresis for Clean Switching
● Outputs Swing 200mV of Power Rails
● CMOS/TTL-Compatible Outputs
● Output Latch (MAX941 Only)
● Shutdown Function (MAX941 Only)
Decriptions of MAX942CSA+
● 3V/5V Systems
● Battery-Powered Systems
● Threshold Detectors/Discriminators
● Line Receivers
● Zero-Crossing Detectors
● Sampling Circuits
Environmental & Export Classifications of MAX942CSA+
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
