LT3010EMS8E-5#PBF Linear Voltage Regulator IC Positive Fixed 1 Output 50mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3010EMS8E-5#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 80V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.55V @ 50mA | Current - Output: | 50mA |
| PSRR: | 68dB (120Hz) | Operating Temperature: | -40°C ~ 125°C |
Product Description
LT3010EMS8E-5#PBF Linear Voltage Regulator IC Positive Fixed 1 Output 50mA
Specifications of LT3010EMS8E-5#PBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 80V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 50mA |
| Current - Output | 50mA |
| PSRR | 68dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

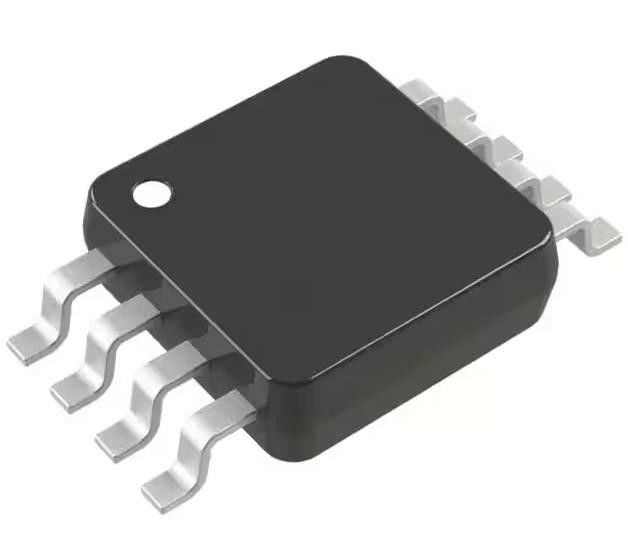

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Base Product Number | LT3010 |
Features of LT3010EMS8E-5#PBF
* Wide Input Voltage Range: 3V to 80V
* Low Quiescent Current: 30µA
* Low Dropout Voltage: 300mV
* Output Current: 50mA
* Thermally Enhanced 8-Lead MSOP Package
* No Protection Diodes Needed
* Fixed Output Voltage: 5V (LT3010-5)
* Adjustable Output from 1.275V to 60V (LT3010)
* 1µA Quiescent Current in Shutdown
* Stable with 1µF Output Capacitor
* Stable with Aluminum, Tantalum or Ceramic Capacitors
* Reverse-Battery Protection
* No Reverse Current Flow from Output
* Thermal Limiting
* AEC-Q100 Qualified for Automotive Applications
Decriptions of LT3010EMS8E-5#PBF
* Low Current High Voltage Regulators
* Regulator for Battery-Powered Systems
* Telecom Applications
* Automotive Applications
Environmental & Export Classifications of LT3010EMS8E-5#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
