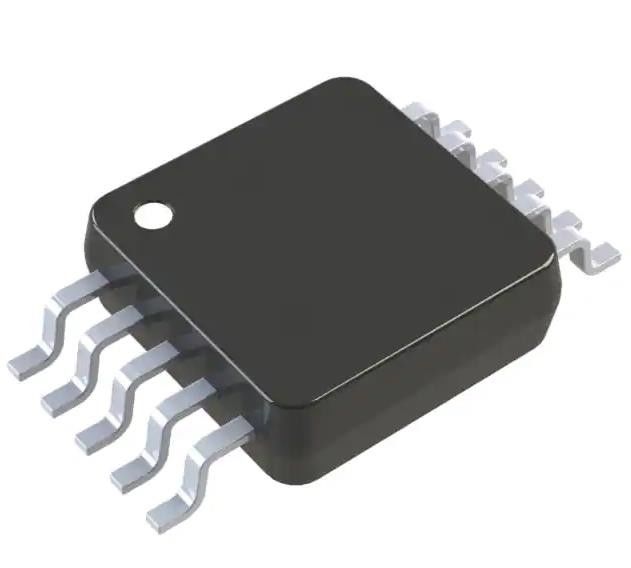

LTC2917IMS-A1#TRPBF Supervisor Open Drain or Open Collector 1 Channel 10-MSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC2917IMS-A1#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Voltages Monitored: | 1 | Voltage - Threshold: | 27 Selectable Threshold Combinations |
|---|---|---|---|
| Output: | Open Drain Or Open Collector | Reset: | Active Low |
| Reset Timeout: | 150ms Minimum | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Supplier Device Package: | 10-MSOP |
Product Description
LTC2917IMS-A1#TRPBF Supervisor Open Drain or Open Collector 1 Channel 10-MSOP
Specifications of LTC2917IMS-A1#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Multi-Voltage Supervisor |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 27 Selectable Threshold Combinations |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | 150ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | LTC2917 |
Features of LTC2917IMS-A1#TRPBF
■ 9 Selectable Supply Voltages
-12V, 5V, 3.3V, 2.5V, 1.8V
-1.5V, 1.2V, 1V, +ADJ (0.5V)
■ 3 Selectable Tolerances
–5%, –10%, –15% (LTC2917)
■ Manual Reset Input (LTC2918)
■ 1.5V to 5.5V Supply Operation
■ Adjustable Watchdog Timeout
■ Windowed Watchdog Timeout for Higher Reliability Applications (LTC2917-B, LTC2918-B)
■ 6.2V Shunt Regulator for High Voltage Operation
■ Guaranteed Operation to 125°C
■ Guaranteed Threshold Accuracy: ±1.5%
■ Low Quiescent Current: 30μA Typical
■ Power Supply Glitch Immunity
■ Guaranteed RST for VCC ≥ 0.8V
■ 10-Lead MSOP Packages and (3mm × 2mm) DFN Packages
Decriptions of LTC2917IMS-A1#TRPBF
■ Handheld Devices
■ Cell Phone Base Stations
■ Automotive Control Systems
■ Network Servers
■ Optical Networking Systems
Environmental & Export Classifications of LTC2917IMS-A1#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
