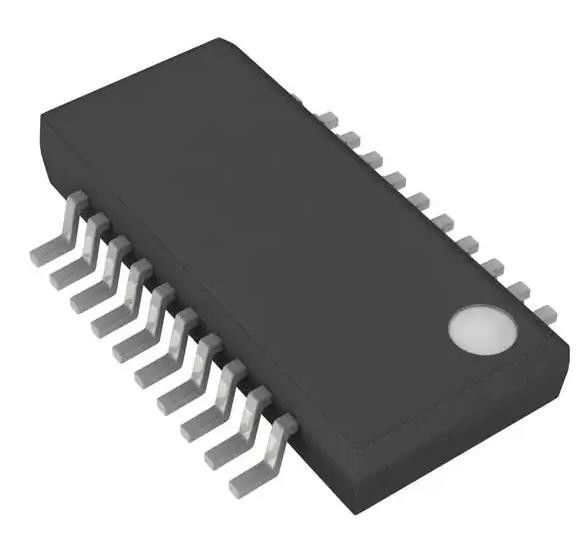

MAX1229BCEP+ 12 Bit Analog to Digital Converter 6 12 Input 1 SAR 20-QSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX1229BCEP+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Number Of Bits: | 12 |
|---|---|---|---|
| Sampling Rate (Per Second): | 300k | Number Of Inputs: | 6,12 |
| Input Type: | Differential, Single Ended | Data Interface: | SPI |
| Configuration: | MUX-S/H-ADC | Ratio - S/H:ADC: | 1:01 |
Product Description
MAX1229BCEP+ 12 Bit Analog to Digital Converter 6 12 Input 1 SAR 20-QSOP
Specifications of MAX1229BCEP+
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 300k |
| Number of Inputs | 6, 12 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | Temperature Sensor |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Mounting Type | Surface Mount |
| Base Product Number | MAX1229 |
Features of MAX1229BCEP+
♦ Internal Temperature Sensor (±0.7°C Accuracy)
♦ 16-Entry First-In/First-Out (FIFO)
♦ Analog Multiplexer with True Differentia Track/Hol 16-, 12-, 8-Channel Single Ended 8-, 6-, 4-Channel True Differential (Unipolar or Bipolar)
♦ Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Overtemperature
♦ Scan Mode, Internal Averaging, and Internal Clock
♦ Low-Power Single +3V Operation 1mA at 300ksps
♦ Internal 2.5V Reference or External Differential Reference
♦ 10MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible Interface
♦ Space-Saving 28-Pin 5mm x 5mm TQFN Package
Decriptions of MAX1229BCEP+
* System Supervision
* Data-Acquisition Systems
* Industrial Control Systems
* Patient Monitoring
* Data Logging
* Instrumentation
Environmental & Export Classifications of MAX1229BCEP+
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
