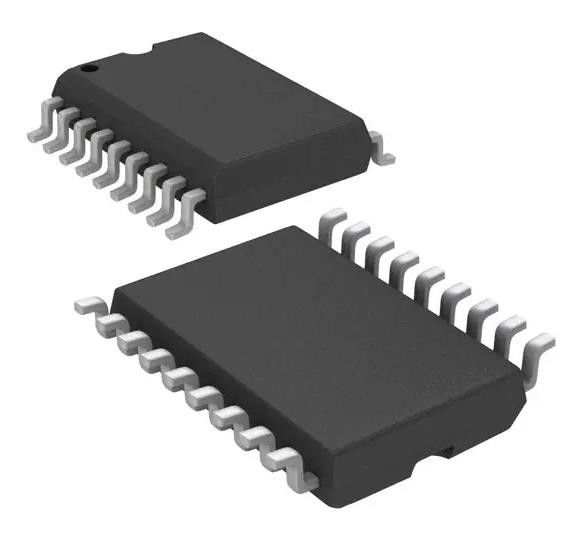

Z86E0208SEG Z8 Z8® Microcontroller IC 8-Bit 8MHz 512B (512 x 8) OTP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | Z86E0208SEG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Core Size: | 8-Bit | Core Processor: | Z8 |
|---|---|---|---|
| Speed: | 8MHz | Peripherals: | POR, WDT |
| Number Of I/O: | 14 | Program Memory Size: | 512B (512 X 8) |
Product Description
Z86E0208SEG Z8 Z8® Microcontroller IC 8-Bit 8MHz 512B (512 x 8) OTP
Specifications of Z86E0208SEG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Zilog |
| Series | Z8® |
| Package | Tube |
| Product Status | Active |
| Core Processor | Z8 |
| Core Size | 8-Bit |
| Speed | 8MHz |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 14 |
| Program Memory Size | 512B (512 x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 61 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Base Product Number | Z86E0208 |
Features of Z86E0208SEG
• 3.5V to 5.5V Operating Range @ 0°C to +70°C
• 4.5V to 5.5V Operating Range @ -40°C to +105°C
• 14 Input/Output Lines
• Six Vectored, Prioritized Interrupts (3 falling edge, 1 rising edge, 1 timer, 1 software)
• Program Options:
– Low Noise
– ROM Protect
– Auto Latch
– Watch-Dog Timer (WDT)
– RC Oscillator
• One Programmable 8-Bit Counter/Timer, with 6-bit Programmable Prescaler
• WDT/Power-On Reset (POR)
• On-Chip Oscillator that accepts XTAL, Ceramic Resonance, LC, RC, or External Clock
• Clock-Free WDT Reset
Descriptions of Z86E0208SEG
ZiLOG’s Z86E02 SL1925 Microcontroller (MCU) is a One-Time Programmable (OTP) member of ZiLOG’s single-chip Z8® MCU family that allows easy software development, debug, prototyping, and small production runs not economically desirable with masked ROM versions.
Environmental & Export Classifications of Z86E0208SEG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
