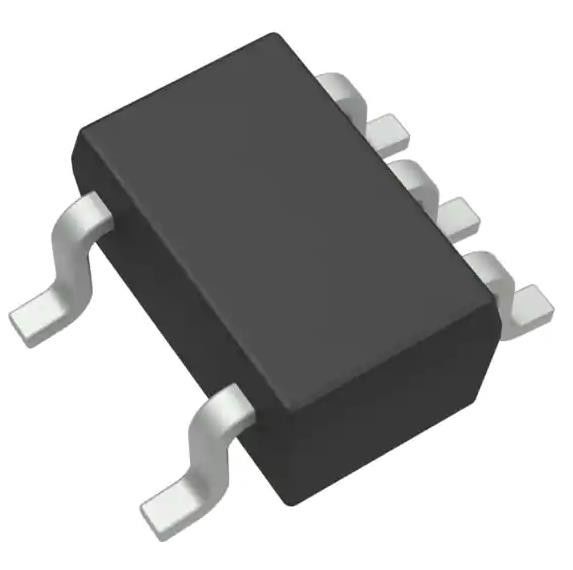

TLV3201AIDCKR Comparator IC General Purpose Push-Pull SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV3201AIDCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Supply, Single/Dual (±): | 2.7V ~ 5.5V | Voltage - Input Offset (Max): | 1mV @ 5V |
|---|---|---|---|
| Current - Input Bias (Max): | 0.005µA @ 5V | Current - Quiescent (Max): | 40µA |
| CMRR, PSRR (Typ): | 70dB CMRR, 85dB PSRR | Propagation Delay (Max): | 50ns |
Product Description
TLV3201AIDCKR Comparator IC General Purpose Push-Pull SC-70-5
Specifications of TLV3201AIDCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Push-Pull |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 1mV @ 5V |
| Current - Input Bias (Max) | 0.005µA @ 5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 40µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 50ns |
| Hysteresis | 1.2mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TLV3201 |
Features of TLV3201AIDCKR
• Low Propagation Delay: 40 ns
• Low Quiescent Current: 40 µA per Channel
• Input Common-Mode Range Extends 200 mV Beyond Either Rail
• Low Input Offset Voltage: 1 mV
• Push-Pull Outputs
• Supply Range: 2.7 V to 5.5 V
• Industrial Temperature Range:
–40°C to 125°C
• Small Packages: 5-Pin SC70, 5-Pin SOT-23, 8-Pin SOIC, 8-Pin VSSOP
Applications of TLV3201AIDCKR
• Inspection Equipment
• Test and Measurement
• High-Speed Sampling Systems
• Telecom
• Portable Communications
Environmental & Export Classifications of TLV3201AIDCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
