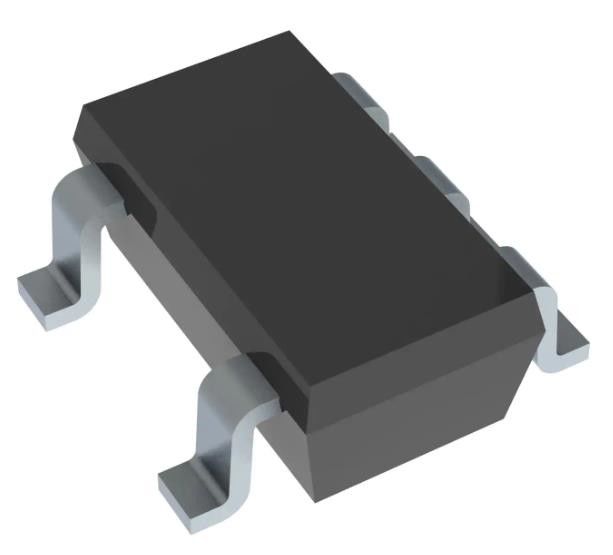

SN74AHCT1G86DBVR XOR (Exclusive OR) IC 1 Channel SOT-23-5 Integrated Circuit Chip
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AHCT1G86DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 4.5V ~ 5.5V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 8mA, 8mA | Input Logic Level - Low: | 0.8V |
Product Description
SN74AHCT1G86DBVR XOR (Exclusive OR) IC 1 Channel SOT-23-5 Integrated Circuit Chip
Specifications of SN74AHCT1G86DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AHCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74AHCT1G86 |
Features of SN74AHCT1G86DBVR
• Operating Range of 4.5 V to 5.5 V
• Max tpd of 8 ns at 5 V
• Low Power Consumption, 10-A Maximum ICC
• 8-mA Output Drive at 5 V
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
Applications of SN74AHCT1G86DBVR
• Industrial PCs
• Stepper Motors
• AC Inverter Drives
• Notebook PCs
• Smart Meters: Data Concentrators
• Enterprise Servers
Environmental & Export Classifications of SN74AHCT1G86DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
