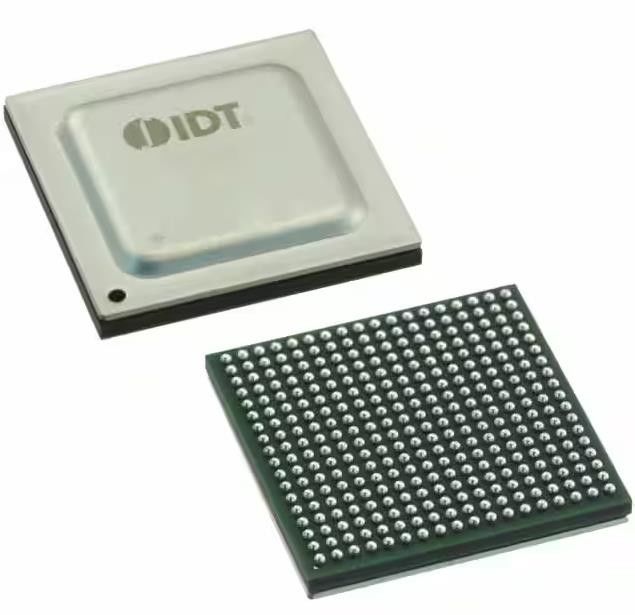

89HPES16T4AG2ZCALG Switch Interfacing Interface 324-FCBGA (19x19)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 89HPES16T4AG2ZCALG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Applications: | Switch Interfacing | Interface: | PCI Express |
|---|---|---|---|
| Voltage - Supply: | 3.3V | Package / Case: | 324-BBGA, FCBGA |
| Supplier Device Package: | 324-FCBGA (19x19) | Mounting Type: | Surface Mount |
Product Description
89HPES16T4AG2ZCALG Switch Interfacing Interface 324-FCBGA (19x19)
Specifications of 89HPES16T4AG2ZCALG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Mfr | Renesas Electronics America Inc |
| Series | PRECISE™ |
| Package | Tray |
| Product Status | Obsolete |
| Applications | Switch Interfacing |
| Interface | PCI Express |
| Voltage - Supply | 3.3V |
| Package / Case | 324-BBGA, FCBGA |
| Supplier Device Package | 324-FCBGA (19x19) |
| Mounting Type | Surface Mount |
| Base Product Number | 89HPES16 |
Features of 89HPES16T4AG2ZCALG
* High Performance PCI Express Switch
– Sixteen 5 Gbps Gen2 PCI Express lanes
– Four switch ports
• One x8 or x4 upstream port
• Up to three x4 downstream ports
– Low latency cut-through switch architecture
– Support for Max Payload Size up to 2048 bytes
– One virtual channel
– Eight traffic classes
– PCI Express Base Specification Revision 2.0 compliant
* Flexible Architecture with Numerous Configuration Options
– Automatic per port link width negotiation to x8, x4, x2 or x1
– Automatic lane reversal on all ports
– Automatic polarity inversion
– Ability to load device configuration from serial EEPROM
* Legacy Support
– PCI compatible INTx emulation
– Bus locking
Applications of 89HPES16T4AG2ZCALG
Utilizing standard PCI Express interconnect, the PES16T4AG2 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers.
Environmental & Export Classifications of 89HPES16T4AG2ZCALG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991C1 |
| HTSUS | 8542.39.0001 |
