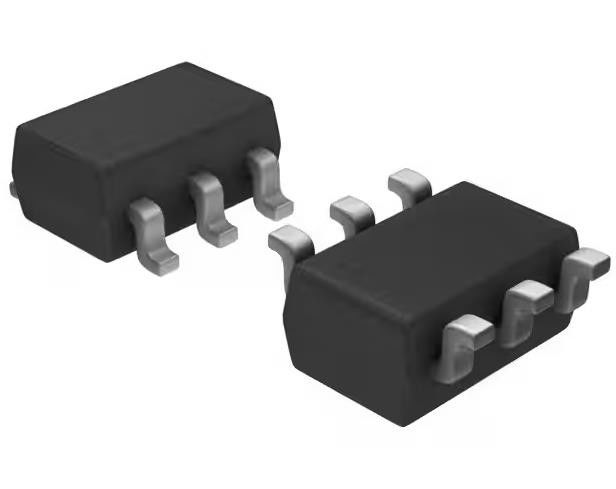

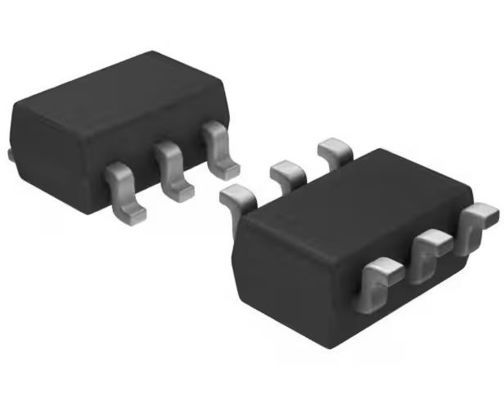

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS5A3159QDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Multiplexer/Demultiplexer Circuit: | 2:01 | Number Of Circuits: | 1 |
|---|---|---|---|
| On-State Resistance (Max): | 1.3Ohm | Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 5.5V | Switch Time (Ton, Toff) (Max): | 35ns, 20ns |
| -3db Bandwidth: | 100MHz | Charge Injection: | 36pC |
Product Description
TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6
Specifications of TS5A3159QDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 36pC |
| Channel Capacitance (CS(off), CD(off)) | 23pF |
| Current - Leakage (IS(off)) (Max) | 6nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TS5A3159 |
Features of TS5A3159QDBVRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1 Ω)
• Control Inputs are 5-V Tolerant
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.65-V to 5.5-V Single-Supply Operation
Applications of TS5A3159QDBVRQ1
• Automotive Infotainment and Cluster
• Body Electronics and Lighting
Environmental & Export Classifications of TS5A3159QDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
