LNK304DG-TL Converter Offline Buck Buck-Boost Flyback Topology 66kHz SO-8C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LNK304DG-TL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Internal Switch(s): | Yes | Voltage - Breakdown: | 700V |
|---|---|---|---|
| Topology: | Buck, Buck-Boost, Flyback | Duty Cycle: | 69% |
| Frequency - Switching: | 66kHz | Fault Protection: | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Output Isolation: | Non-Isolated |
Product Description

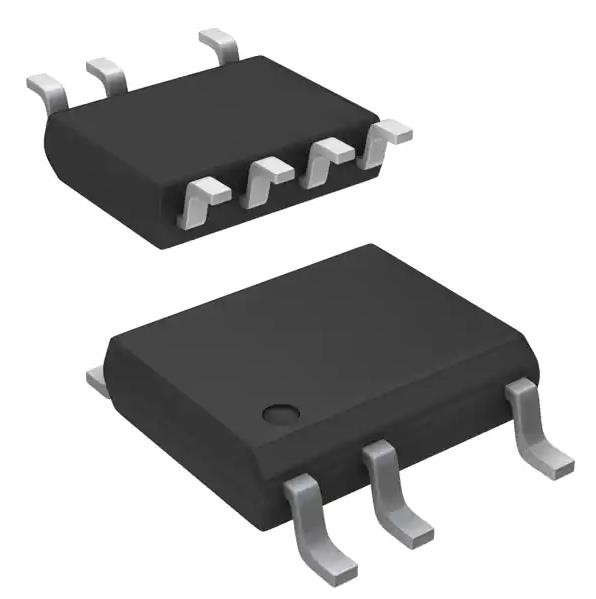

LNK304DG-TL Converter Offline Buck Buck-Boost Flyback Topology 66kHz SO-8C
Specifications of LNK304DG-TL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | LinkSwitch®-TN |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Base Product Number | LNK304 |
Features of LNK304DG-TL
• Lowest cost and component count buck converter solution
• Fully integrated auto-restart for short-circuit and open loop fault protection – saves external component costs
• LNK302 uses a simplified controller without auto-restart for very low system cost
Applications of LNK304DG-TL
• Appliances and timers
• LED drivers and industrial controls
Environmental & Export Classifications of LNK304DG-TL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
