UCC37324DR Integrated Circuit Chip Low-Side Gate Driver IC Non-Inverting 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC37324DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Independent |
|---|---|---|---|
| Number Of Drivers: | 2 | Gate Type: | N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 15V | Logic Voltage - VIL, VIH: | 1V, 2V |
| Current - Peak Output (Source, Sink): | 4A, 4A | Rise / Fall Time (Typ): | 20ns, 15ns |
Product Description

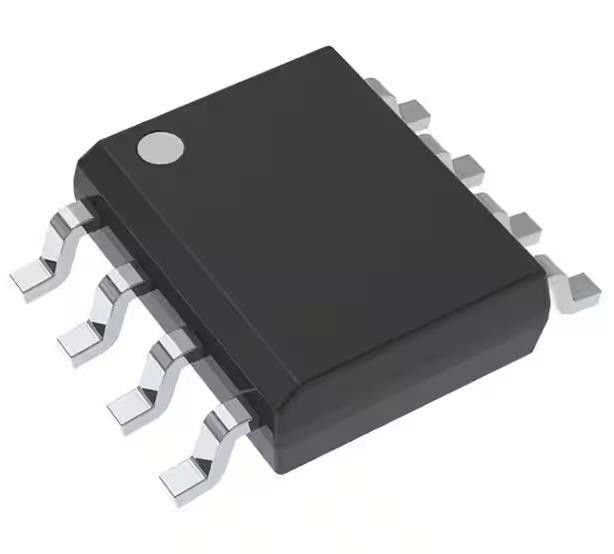

UCC37324DR Integrated Circuit Chip Low-Side Gate Driver IC Non-Inverting 8-SOIC
Specifications of UCC37324DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 20ns, 15ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UCC37324 |
Features of UCC37324DR
• Bi-CMOS Output Architecture
• ±4 A Drive Current at the Miller Plateau Region
• Constant-Current Even at Low Supply Voltages
• Outputs Paralleled for Higher Drive Current
• Available in MSOP-PowerPAD™ Package
• TTL/CMOS Inputs Independent of Supply Voltage
• Industry-Standard Pin-Out
Applications of UCC37324DR
• Switch-Mode Power Supplies
• DC-DC Converters
• Solar Inverters, Motor Control, UPS
Environmental & Export Classifications of UCC37324DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
