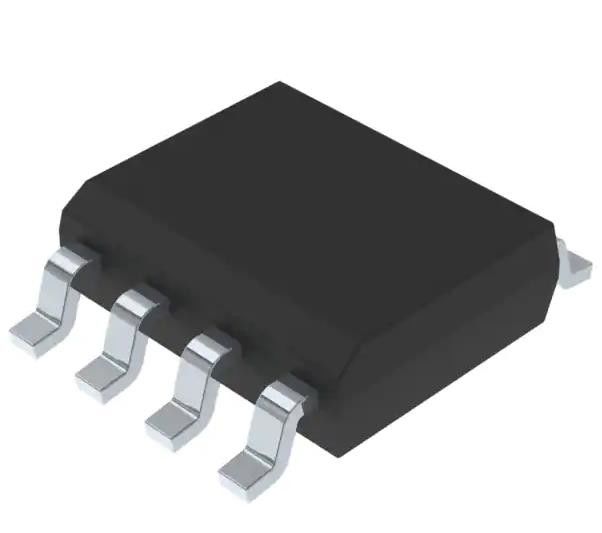

UC3843BD1013TR Boost Flyback Regulator Positive Isolation Capable Controller
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UC3843BD1013TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 7.6V ~ 30V | Frequency - Switching: | Up To 500kHz |
| Duty Cycle (Max): | 96% | Synchronous Rectifier: | No |
| Control Features: | Frequency Control | Operating Temperature: | 0°C ~ 70°C (TJ) |
Product Description
UC3843BD1013TR Boost Flyback Regulator Positive Isolation Capable Controller
Specifications of UC3843BD1013TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | STMicroelectronics |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UC3843 |
Features of UC3843BD1013TR
. TRIMMED OSCILLATOR FOR PRECISE FREQUENCY CONTROL
. OSCILLATOR FREQUENCY GUARANTEED AT 250kHz
. CURRENT MODE OPERATION TO 500kHz
. AUTOMATIC FEED FORWARD COMPENSATION
. LATCHING PWM FOR CYCLE-BY-CYCLE CURRENT LIMITING
.INTERNALLY TRIMMED REFERENCE WITH UNDERVOLTAGE LOCKOUT
. HIGH CURRENT TOTEM POLE OUTPUT
. UNDERVOLTAGE LOCKOUT WITH HYSTERESIS
. LOW START-UP AND OPERATING CURRENT
Applications of UC3843BD1013TR
The UC384xB family of control ICs provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count.
Environmental & Export Classifications of UC3843BD1013TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
