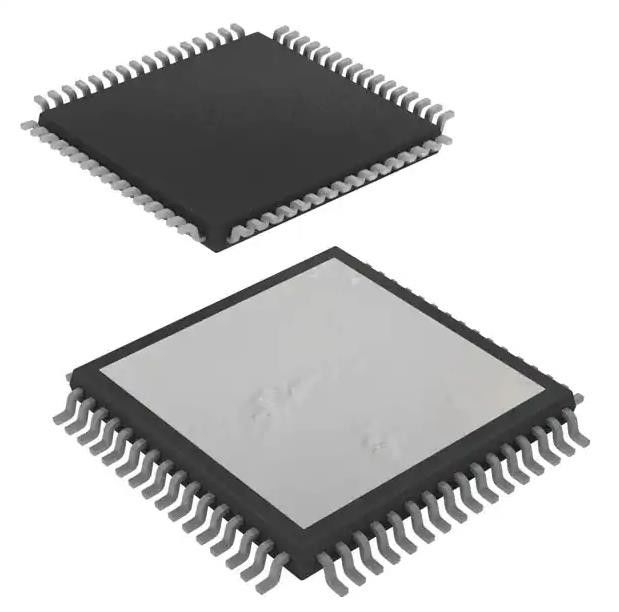

TUSB9261IPVP HDD, CD, DVD Drive Interface 64-HTQFP (7x7)

Product Description

TUSB8020BPHPR USB Hub Controller USB 3.0 USB, GPIO, I²C, SMBus Interface

Specifications of TUSB9261IPVP

Features of TUSB9261IPVP

• Universal Serial Bus (USB)
– SuperSpeed USB 3.0 Compliant – TID 340730020
– Integrated Transceiver Supports SS/HS/FS Signaling
– Best-in-Class Adaptive Equalizer
– Allows for Greater Jitter Tolerance in the Receiver
– USB Class Support
– USB Attached SCSI Protocol (UASP)
– USB Mass Storage Class Bulk-Only Transport (BOT)
– Support for Error Conditions Per the 13 Cases (Defined in the BOT Specification)
– USB Bootability Support
– USB Human Interface Device (HID)
– Supports Firmware Update Via USB, Using a TI Provided Application
• SATA Interface
– Serial ATA Specification Revision 2.6
– Gen1i, Gen1m, Gen2i, and Gen2m
– Support for Mass-Storage Devices Compatible With the ATA/ATAPI-8 Specification
• Integrated ARM Cortex M3 Core
– Customizable Application Code Loaded from EEPROM by SPI Interface
– Two Additional SPI Port Chip Selects for Peripheral Connection
– Up to 12 GPIOs for End-User Configuration
– Two GPIOs have PWM Functionality for LED Blink Speed Control
– Serial Communications Interface for Debug (UART)
• General Features
– Integrated Spread Spectrum Clock Generation Enables Operation from a Single Low-Cost Crystal or Clock Oscillator
– Supports 40 MHz
– A JTAG Interface is Used for IEEE1149.1 and IEEE1149.6 Boundary Scan
– Available in a Fully RoHS-Compliant Package

Applications of TUSB9261IPVP

• External HDD/SSD
• External DVD
• External CD
• HDD-Based Portable Media Player
