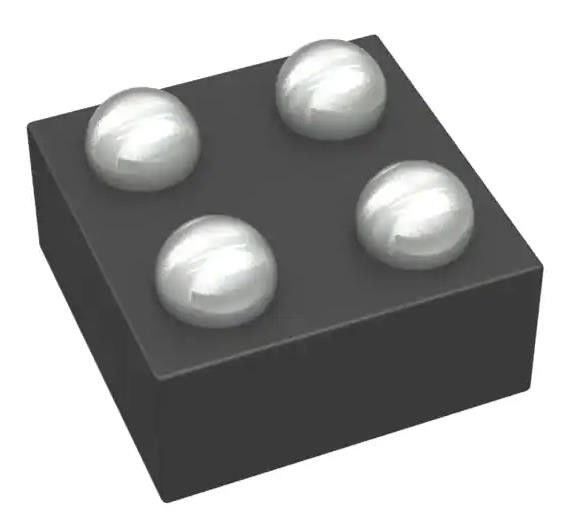

TPS22901YFPR IC Chip Power Switch/Driver 1:1 P-Channel 500mA 4-DSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS22901YFPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
|---|---|---|---|
| Output Configuration: | High Side | Output Type: | P-Channel |
| Interface: | On/Off | Voltage - Load: | 1V ~ 3.6V |
| Current - Output (Max): | 500mA | Rds On (Typ): | 78mOhm |
Product Description
TPS22901YFPR IC Chip Power Switch/Driver 1:1 P-Channel 500mA 4-DSBGA
Specifications of TPS22901YFPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 78mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-DSBGA |
| Package / Case | 4-XFBGA, DSBGA |
| Base Product Number | TPS22901 |
Features of TPS22901YFPR
• Integrated P-Channel Load Switch
• Low Input Voltage: 1 V to 3.6 V
• ON-Resistance (Typical Values)
– rON = 78 mΩ at VIN = 3.6 V
– rON = 93 mΩ at VIN = 2.5 V
– rON = 109 mΩ at VIN = 1.8 V
– rON = 146 mΩ at VIN = 1.2 V
• 500 mA Maximum Continuous Switch Current
• Quiescent Current: 82 nA at 1.8 V
• Shutdown Current: 44 nA at 1.8 V
• Low Control Input Thresholds Enable Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V Logic
• Controlled Slew Rate to Avoid Inrush Currents
– tr = 40 μs at VIN = 1.8 V (TPS22901/2)
– tr = 220 μs at VIN = 1.8 V (TPS22902B)
• Quick Output Discharge (TPS22902/2B)
• ESD Performance Tested Per JESD 22 – 2000-V Human Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
• Four-Pin Wafer-Chip-Scale DSBGA Package
– 0.8-mm × 0.8-mm, 0.4-mm Pitch, 0.5-mm Height (YFP)
Applications of TPS22901YFPR
• Personal Digital Assistants (PDAs)
• Cellular Phones
• GPS Devices
• MP3 Players
• Digital Cameras
• Peripheral Ports
• Portable Instrumentation
• RF Modules
Environmental & Export Classifications of TPS22901YFPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
