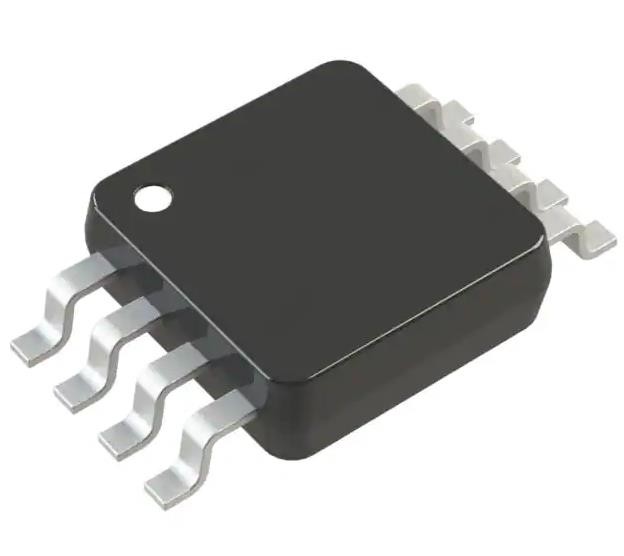

AD5620CRMZ-2REEL7 IC Chip 12 Bit Digital to Analog Converter 1 8-MSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD5620CRMZ-2REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Number Of D/A Converters: | 1 |
|---|---|---|---|
| Settling Time: | 10µs | Output Type: | Voltage - Buffered |
| Data Interface: | SPI, DSP | Voltage - Supply, Analog: | 5V |
| Voltage - Supply, Digital: | 5V | INL/DNL (LSB): | ±1 (Max), ±0.25 (Max) |
Product Description
AD5620CRMZ-2REEL7 IC Chip 12 Bit Digital to Analog Converter 1 8-MSOP
Specifications of AD5620CRMZ-2REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Mfr | Analog Devices Inc. |
| Series | nanoDAC® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±0.25 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5620 |
Features of AD5620CRMZ-2REEL7
* Low power, single nanoDACs
- AD5660: 16 bits
- AD5640: 14 bits
- AD5620: 12 bits
* 12-bit accuracy guaranteed
* On-chip, 1.25 V/2.5 V, 5 ppm/°C reference
* Tiny 8-lead SOT-23, MSOP, and LFCSP packages
* Power-down to 480 nA @ 5 V, 200 nA @ 3 V
* 3 V/5 V single power supply
* Guaranteed 16-bit monotonic by design
* Power-on reset to zero/midscale
* 3 power-down functions
* Serial interface with Schmitt-triggered inputs
* Rail-to-rail operation
* SYNC interrupt facility
Applications of AD5620CRMZ-2REEL7
* Process control
* Data acquisition systems
* Portable battery-powered instruments
* Digital gain and offset adjustment
* Programmable voltage and current sources
* Programmable attenuators
Environmental & Export Classifications of AD5620CRMZ-2REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
